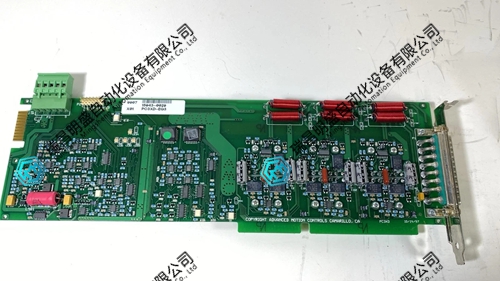

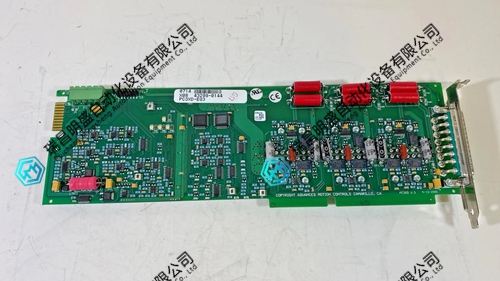

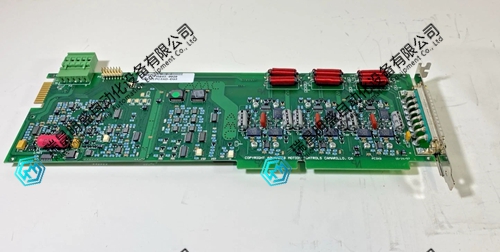

ADVANCED PC3XD-EQ3 控制卡 PDF资料
1.产 品 资 料 介 绍：
ADVANCED PC3XD-EQ3 控制卡是一款由Advanced Motion Controls生产、主要配套Brooks Automation设备的专用AMP功率放大板。该型号（PC3XD-EQ3）的核心特点如下：
为Brooks Automation机械手臂配套的AMP功率放大板。
实际制造商为Advanced Motion Controls。
负责多轴马达的驱动电流放大与控制信号转换。
常见于ESC-200、ESC-212控制器及ATM/EFEM搬运机构。
属于PC3XD系列后期版本，设计稳定性更高。
采用模组化设计，具备较强可维修性。
内置过流、过温、欠压与短路多重保护。
通过PWM信号控制各轴驱动。
采用模块化PCB板卡形态，安装于控制柜内。
配备状态LED指示灯，辅助故障判断。
常见故障包括驱动芯片损坏、MOSFET短路等。
暴冲、单轴无反应、过热停转为典型故障现象。
原厂已停产，市场流通以二手或翻新备件为主。
可进行元件级维修，修复功率级与保护侦测电路。
更换或维修后需进行三轴SVON及HOME动作测试。
总之，PC3XD-EQ3是Brooks Automation设备中关键的功率放大与驱动控制组件，为多轴机械臂的精准动作提供可靠支持。
The ADVANCED PC3XD-EQ3 control card is a specialized AMP power amplifier board produced by Advanced Motion Controls and mainly used in conjunction with Brooks Automation equipment. The core features of this model (PC3XD-EQ3) are as follows:
AMP power amplifier board for Brooks Automation robotic arm.
The actual manufacturer is Advanced Motion Controls.
Responsible for amplifying the driving current and converting control signals of multi axis motors.
Commonly found in ESC-200, ESC-212 controllers, and ATM/EFEM handling mechanisms.
Belonging to the later version of the PC3XD series, it has higher design stability.
Adopting modular design, it has strong maintainability.
Built in multiple protections for overcurrent, overheating, undervoltage, and short circuit.
Control the drive of each axis through PWM signals.
Adopting a modular PCB board form, installed inside the control cabinet.
Equipped with status LED indicator lights to assist in fault diagnosis.
Common faults include damage to the driver chip, MOSFET short circuit, etc.
Typical fault phenomena include sudden surge, unresponsive single axis, and overheating shutdown.
The original factory has ceased production, and the market circulation mainly consists of second-hand or refurbished spare parts.
Component level maintenance can be carried out to repair power level and protection detection circuits.
After replacement or repair, three-axis SVON and HOME motion tests are required.
In summary, PC3XD-EQ3 is a critical power amplifier and drive control component in Brooks Automation equipment, providing reliable support for precise movements of multi axis robotic arms.
