ICT 402-03 L1 扫描发生板 PDF资料
1.产 品 资 料 介 绍：
ICT 402-03 L1 扫描发生板是捷智（JET）ICT在线测试仪中的核心扫描板组件，用于控制测试信号的切换与路由。该型号（402-03 L1）的核心特点如下：
属于捷智ICT在线测试仪的扫描板组件。
采用磁簧式继电器设计，寿命长。
继电器使用寿命可达数亿次开关动作。
用于控制测试探针与测试点的信号连接。
可实现高密度测试节点的快速扫描切换。
支持二极管测试电压可达50V。
小电容和小电感量测较准确稳定。
电容极性可侦测率较高。
具备残存电压侦测功能，保护板卡。
可耐高压，板卡受充分保护。
与Agilent TestJet技术配合，提升IC引脚测试能力。
适用于电阻、电容、IC等元件电气测试。
可检测短路、断路、缺件、错件等问题。
作为ICT设备核心部件，用于PCBA在线测试。
常见于二手备件市场，用于设备维修更换。
总之，402-03 L1是捷智ICT测试仪中关键的扫描发生组件，为电路板元器件的在线检测提供可靠支持
ICT 402-03 L1 扫描发生板 英文介绍
The ICT 402-03 L1 scanning generator board is the core scanning board component in the JET ICT online tester, used to control the switching and routing of test signals. The core features of this model (402-03 L1) are as follows:
The scanning board component belonging to the Jiezhi ICT online tester.
Designed with a magnetic spring relay, it has a long lifespan.
The service life of relays can reach hundreds of millions of switching actions.
Used to control the signal connection between the test probe and the test point.
It can achieve fast scanning and switching of high-density testing nodes.
Supports diode testing voltage up to 50V.
The measurement of small capacitors and small inductors is more accurate and stable.
The detection rate of capacitor polarity is relatively high.
Equipped with residual voltage detection function to protect the board.
Capable of withstanding high voltage, the board is fully protected.
Collaborate with Agilent TestJet technology to enhance IC pin testing capabilities.
Suitable for electrical testing of components such as resistors, capacitors, and ICs.
Can detect issues such as short circuits, open circuits, missing parts, and wrong parts.
As a core component of ICT equipment, it is used for PCBA online testing.
Commonly found in the second-hand spare parts market, used for equipment maintenance and replacement.
In summary, 402-03 L1 is a key scanning component in the Jiezhi ICT tester, providing reliable support for online detection of circuit board components

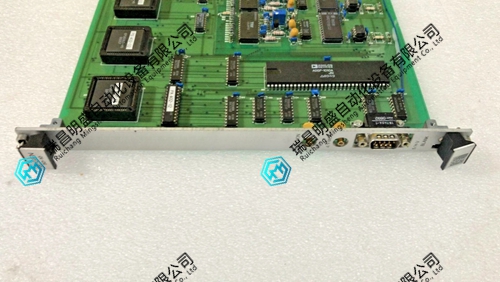

ICT 402-03 L1 扫描发生板 产品图片
