TEL 3281-000124-11 视觉卡 PDF资料
1.产 品 资 料 介 绍：

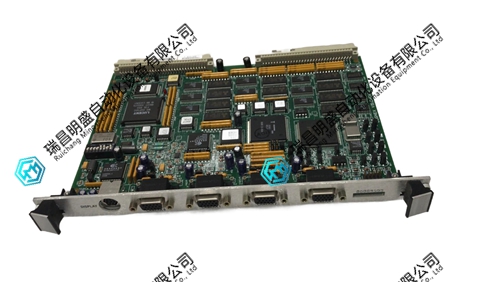

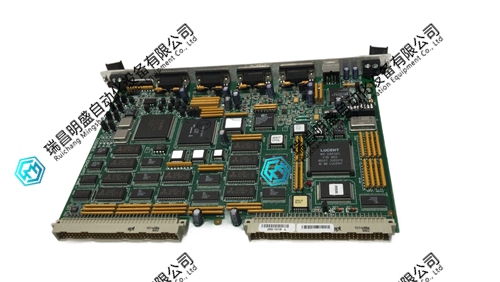

TEL 3281-000124-11 视觉卡是东京电子（Tokyo Electron）半导体设备中用于图像采集与视觉处理的关键板卡，由Cognex（康耐视）制造，对应型号为200-1019 Visioncard VME PCB。该型号（3281-000124-11）的核心特点如下：
采用VME总线标准，适配工业嵌入式系统。
专用于TEL半导体设备的视觉引导与定位。
由Cognex原厂制造，视觉技术成熟可靠。
用于晶圆对准、校准等精密视觉任务。
板卡为标准VME规格，插拔安装便捷。
元器件布局紧凑，采用表面贴装工艺。
板载工作状态指示灯，便于现场诊断。
接口定义符合Cognex视觉卡标准。
可作为TEL设备视觉系统的核心处理单元。
市场流通多为二手或翻新备件。
常用于设备维修中的视觉系统替换。
对晶圆对准精度和设备正常运行至关重要。
采购时需确认接口与机箱兼容性。
安装调试需参照原机台技术手册。
属于TEL设备的专用备件，通用性有限。
总之，3281-000124-11是TEL设备中关键的视觉处理组件，为晶圆对准与检测提供稳定可靠的图像处理支持。
TEL 3281-000124-11 Vision Card is a key board used for image acquisition and visual processing in Tokyo Electron semiconductor equipment. It is manufactured by Cognex and corresponds to the model 200-1019 Visioncard VME PCB. The core features of this model (3281-000124-11) are as follows:
Adopting the VME bus standard, adapted for industrial embedded systems.
Specially designed for visual guidance and positioning of TEL semiconductor equipment.
Made by Cognex factory, with mature and reliable visual technology.
Used for precision visual tasks such as wafer alignment and calibration.
The board adopts standard VME specifications, making it easy to plug and install.
The component layout is compact and adopts surface mount technology.
Onboard working status indicator light, convenient for on-site diagnosis.
The interface definition complies with the Cognex visual card standard.
Can serve as the core processing unit of TEL device vision system.
The market circulation is mostly second-hand or refurbished spare parts.
Commonly used for replacing visual systems in equipment maintenance.
The accuracy of wafer alignment and the normal operation of equipment are crucial.
When purchasing, it is necessary to confirm the compatibility between the interface and the chassis.
Installation and debugging should refer to the original machine technical manual.
Special spare parts for TEL equipment with limited universality.
In summary, 3281-000124-11 is a critical visual processing component in TEL equipment, providing stable and reliable image processing support for wafer alignment and inspection.
