EQUIPE 2002-0142-022 输入 / 输出控制板 PDF资料
1.产 品 资 料 介 绍：
EQUIPE 2002-0142-022 输入/输出控制板，核心特点如下（共15条）：
中间（15条）
专为半导体光学检测系统设计。
适配KLA-Tencor CRS-3000/3100系列设备。
负责系统内部信号传输与设备控制。
采用工业级PCB基材，适应产线连续运行环境。
板载光耦合隔离电路，实现输入输出电气隔离。
支持多路数字输入通道，接收外部传感器信号。
支持多路数字输出通道，驱动外部执行器动作。
额定工作电压为24V DC，符合工业控制标准。
输出通道具备短路保护功能，防止负载异常损坏板卡。
输入信号响应时间快速，满足实时控制需求。
接插件采用工业标准接口，确保连接稳固可靠。
PCB布局设计充分考虑散热，保证长期稳定工作。
防护等级达到IP20，适用于常规工业环境。
尺寸设计兼容标准机柜安装，更换维护方便。
经专业渠道测试验证，功能完好。
结尾
总之，型号 EQUIPE 2002-0142-022 接口标准、电气保护完善、专用于KLA检测系统，是半导体设备控制环节的可靠备件。
EQUIPE 2002-0142-022 输入 / 输出控制板 英文介绍
EQUIPE 2002-0142-022 input/output control board, with the following core features (15 in total):
Middle (15 items)
Specially designed for semiconductor optical detection systems.
Compatible with KLA Tencor CRS-3000/3100 series equipment.
Responsible for internal signal transmission and equipment control within the system.
Using industrial grade PCB substrate to adapt to the continuous operation environment of the production line.
Onboard optical coupling isolation circuit to achieve electrical isolation of input and output.
Supports multiple digital input channels and receives external sensor signals.
Support multiple digital output channels to drive external actuator actions.
The rated working voltage is 24V DC, which complies with industrial control standards.
The output channel has short-circuit protection function to prevent abnormal load from damaging the board.
Fast response time for input signals, meeting real-time control requirements.
The connectors adopt industrial standard interfaces to ensure stable and reliable connections.
PCB layout design fully considers heat dissipation to ensure long-term stable operation.
The protection level reaches IP20, suitable for conventional industrial environments.
The size design is compatible with standard cabinet installation and easy to replace and maintain.
Tested and verified through professional channels, the functionality is intact.
ending
In summary, the EQUIPE 2002-0142-022 interface standard, complete electrical protection, and dedicated to KLA detection systems are reliable spare parts for semiconductor equipment control.

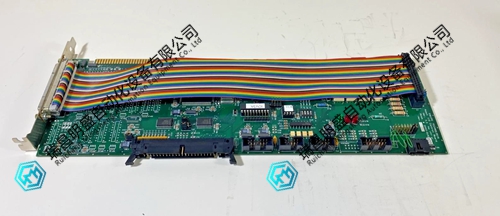

EQUIPE 2002-0142-022 输入 / 输出控制板 产品图片
