BOSE 323984-0030 W 控制器模块 PDF资料
1.产 品 资 料 介 绍：

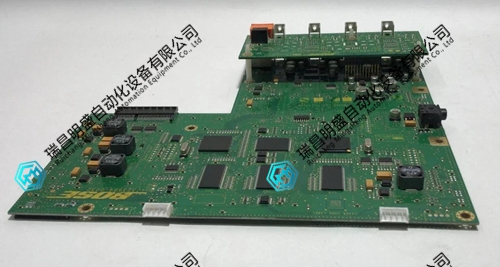

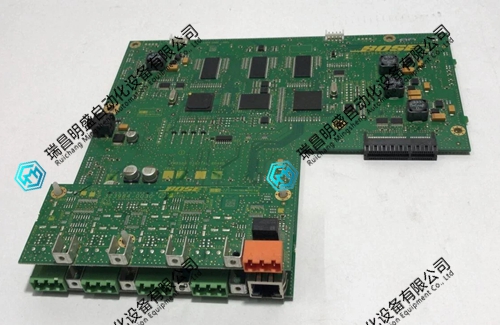

BOSE 323984-0030 W 控制器模块是BOSE专业音频系统中的控制组件，通常承担区域音量调节、音源选择或系统场景调用的功能。
中间（15条特点）
适配BOSE ControlSpace音频处理系统。
支持与BOSE ESP/EX系列处理器配合使用。
采用以太网连接，支持PoE供电，布线简便。
面板通常带音量/音源状态LED指示灯。
支持通过ControlSpace Designer软件进行配置。
可编程设定音量范围与音源选项。
支持自定义标签，便于识别不同区域。
外观设计简约，适配标准电工墙盒安装。
工作温度范围为0°C至40°C。
单个系统内可支持多达16个控制器单元。
部分型号带液晶显示屏，可显示系统状态。
支持场景调用，一键切换系统配置。
关键电路具备静电保护设计。
采用工业级元器件，运行稳定。
符合BOSE专业音频系统标准规格。
结尾
总体而言，BOSE 323984-0030 W 是一款功能实用、安装便捷的控制组件，能够满足专业音频系统中区域控制与场景调用的常规需求
The BOSE 323984-0030 W controller module is a control component in the BOSE professional audio system, typically responsible for regional volume adjustment, sound source selection, or system scene calling functions.
Middle (15 characteristics)
Compatible with BOSE ControlSpace audio processing system.
Supports use with BOSE ESP/EX series processors.
Adopting Ethernet connection, supporting PoE power supply, and easy wiring.
The panel usually comes with volume/audio status LED indicators.
Support configuration through ControlSpace Designer software.
Programmable volume range and audio source options.
Support custom labels for easy identification of different regions.
The appearance design is simple and suitable for standard electrical wall box installation.
The working temperature range is from 0 ° C to 40 ° C.
A single system can support up to 16 controller units.
Some models come with LCD screens that can display system status.
Support scene calling and one click switching of system configuration.
The key circuit is designed with electrostatic protection.
Using industrial grade components for stable operation.
Compliant with BOSE professional audio system standard specifications.
ending
Overall, BOSE 323984-0030 W is a practical and easy to install control component that can meet the common needs of area control and scene calling in professional audio systems
