TEL AP9Z-2033A 输入输出模块 PDF资料
1.产 品 资 料 介 绍：

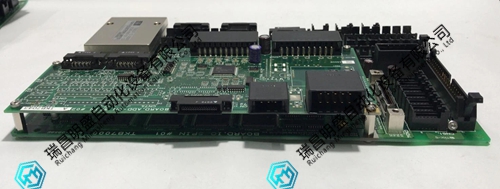

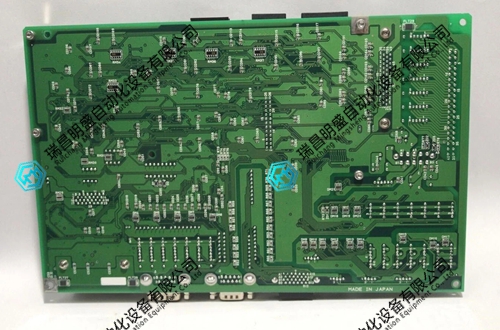

TEL AP9Z-2033A 输入输出模块产品特点
TEL AP9Z-2033A 是东京电子（Tokyo Electron）旗下的一款附加扩展板，主要用于工业控制系统的输入输出信号扩展。其主要特点如下：
作为附加旋转板，用于工业控制系统的I/O扩展与信号处理。
采用多层FR4基板，表面涂覆三防漆，具备防尘防潮保护。
板载微控制器，可分担主处理器的本地处理任务。
配备光耦隔离输入输出通道，实现电气隔离，提高抗干扰能力。
提供三条排线接口（34针、20针、10针），用于连接背板或堆叠扩展。
配有一个2针螺丝型电源接口，由5V直流供电。
设有状态LED指示灯，便于观察电源和运行状态。
提供配置跳线和DIP地址选择开关，方便灵活设置。
设有多个测试点，便于故障诊断和调试。
尺寸约为200mm × 160mm，结构紧凑。
工作温度范围为0至50℃，适用于常规工业环境。
符合RoHS环保标准，并满足CE和FCC的工业设备要求。
适用于半导体晶圆处理设备、贴片机或PCB组装系统等场景。
涉及多个关联料号（5044-000171-11、TKB7042、TKB7043等），便于备件识别。
作为OEM设备的专用备件，通常仅通过设备制造商渠道获得。
综上，TEL AP9Z-2033A 是一款专为东京电子工业控制系统设计的I/O扩展模块，具备光耦隔离、灵活配置和结构紧凑等特点，适用于半导体制造等精密自动化场景。
Product Features of TEL AP9Z-2033A Input/Output Module
TEL AP9Z-2033A is an additional expansion board under Tokyo Electron, mainly used for input and output signal expansion in industrial control systems. Its main characteristics are as follows:
As an additional rotating board, it is used for I/O expansion and signal processing in industrial control systems.
Adopting multi-layer FR4 substrate and coated with three proof paint on the surface, it has dust-proof and moisture-proof protection.
Onboard microcontroller that can share the local processing tasks of the main processor.
Equipped with optocoupler isolation input and output channels to achieve electrical isolation and improve anti-interference ability.
Provide three cable interfaces (34 pin, 20 pin, 10 pin) for connecting backboards or stacking extensions.
Equipped with a 2-pin screw type power interface, powered by 5V DC.
Equipped with status LED indicator lights for easy observation of power and operating status.
Provide configuration jumpers and DIP address selection switches for easy and flexible settings.
Multiple testing points are set up for easy fault diagnosis and debugging.
The size is approximately 200mm x 160mm, with a compact structure.
The working temperature range is 0 to 50 ℃, suitable for conventional industrial environments.
Compliant with RoHS environmental standards and meeting CE and FCC industrial equipment requirements.
Suitable for scenarios such as semiconductor wafer processing equipment, surface mount machines, or PCB assembly systems.
Multiple associated part numbers (5044-000171-11, TKB7042, TKB7043, etc.) are involved for easy identification of spare parts.
As a specialized spare part for OEM equipment, it is usually only obtained through the channels of the equipment manufacturer.
In summary, TEL AP9Z-2033A is an I/O expansion module designed specifically for Tokyo electronic industrial control systems. It features optocoupler isolation, flexible configuration, and compact structure, making it suitable for precision automation scenarios such as semiconductor manufacturing.
