SXWTBASW110002 控制器 PDF资料
1.产 品 资 料 介 绍：
SXWTBASW110002 控制器产品特点
SXWTBASW110002 是施耐德电气 SpaceLogic 系列的一款端子底座，正式型号为 TB-ASP-W1，是 AS-P 系列控制器的专用安装与连接配件。其主要特点如下：
是 SpaceLogic AS-P 系列服务器的专用端子底座，为必配安装件。
兼容 AS-P、AS-P-SMK 等多种控制器型号。
额定电压为 24V DC，采用标准低压供电。
额定电流为 0.4A，功耗较低。
提供10个接线极数，满足基本连接需求。
采用插拔式电气连接，安装和维护方便快捷。
支持卡爪式固定安装，无需复杂工具即可完成。
防护等级为 IP20，可防护大于12mm的固体异物进入。
塑料阻燃等级达到 UL94-5VB，安全性有保障。
外形尺寸为宽114mm、高90mm、深约64-90mm，结构紧凑。
支持连接 AS-P 控制器上的双以太网口、USB 和 RS-485 端口。
支持 I/O 总线供电，可为连接的扩展模块提供电源。
工作温度范围为 0 至 50℃，适合常规室内环境使用。
适用于楼宇自动化、暖通空调控制及烟雾控制系统等场景。
符合 CE、UL 916 及 UL 864 等多项国际安全与电磁兼容认证。
总之，SXWTBASW110002 作为施耐德 AS-P 控制器的专用端子底座，为控制器提供了可靠的物理连接与安装基础，是构建 EcoStruxure 楼宇管理系统的重要硬件组件。
SXWTBASW110002 控制器 英文介绍
SXWTBASW110002 Controller Product Features
SXWTBASW110002 is a terminal base from Schneider Electric's SpaceLogic series, officially designated as TB-ASP-W1. It is a specialized installation and connection accessory for AS-P series controllers. Its main characteristics are as follows:
It is a dedicated terminal base for SpaceLogic AS-P series servers and is a mandatory installation component.
Compatible with various controller models such as AS-P and AS-P-SMK.
The rated voltage is 24V DC and standard low-voltage power supply is used.
The rated current is 0.4A and the power consumption is relatively low.
Provide 10 wiring poles to meet basic connection requirements.
Adopting plug-in electrical connections, installation and maintenance are convenient and fast.
Support claw type fixed installation, which can be completed without complex tools.
The protection level is IP20, which can prevent solid foreign objects larger than 12mm from entering.
The flame retardant rating of plastic reaches UL94-5VB, ensuring safety.
The external dimensions are 114mm wide, 90mm high, and approximately 64-90mm deep, with a compact structure.
Supports connecting dual Ethernet ports, USB, and RS-485 ports on the AS-P controller.
Supports I/O bus power supply and can provide power for connected expansion modules.
The working temperature range is 0 to 50 ℃, suitable for use in conventional indoor environments.
Suitable for scenarios such as building automation, HVAC control, and smoke control systems.
Compliant with multiple international safety and electromagnetic compatibility certifications such as CE, UL 916, and UL 864.
In summary, SXWTBASW110002, as a dedicated terminal base for Schneider AS-P controllers, provides a reliable physical connection and installation foundation for the controller, and is an important hardware component for building the EcoStruxure building management system.

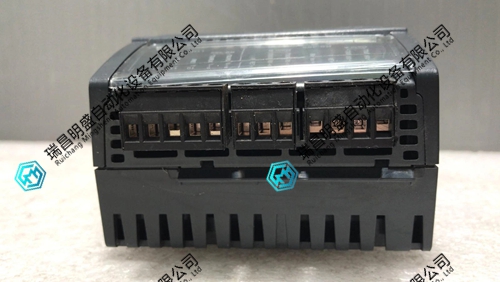

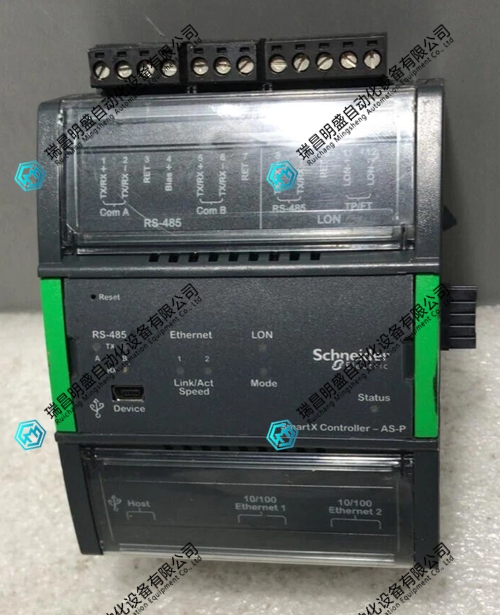

SXWTBASW110002 控制器 产品图片
