Shimadzu EI-D3203M 涡轮分子泵控制器单元 PDF资料
1.产 品 资 料 介 绍：
Shimadzu EI-D3203M 是岛津公司为涡轮分子泵配套设计的专用控制器单元，负责驱动泵体高速旋转并实现精确的真空控制，在GC-MS等分析仪器中扮演关键角色。
产品特点（中间15条）
专为岛津EI-D系列涡轮分子泵配套设计。
为涡轮分子泵提供稳定的电力驱动与控制。
支持无传感器控制技术，无需霍尔元件等检测装置。
实现低转速范围内的高精度驱动控制。
支持再生制动功能，增强制动性能。
结构设计紧凑，节省安装空间。
支持与水冷或风冷系统配合散热。
标准输入电压为AC 200-240V ±10%。
具备过电压、过电流等保护机制。
适用于气相色谱-质谱联用仪等分析设备。
配合岛津涡轮分子泵可提供高抽速和稳定的超高真空。
运行噪音和振动水平较低，适合实验室环境。
与岛津配套泵体协同工作，保障分析灵敏度和重复性。
整体可靠性高，适合长期测试和研究场景。
便于集成到现有仪器平台中。
结尾
Shimadzu EI-D3203M 控制器单元凭借精确的驱动控制、紧凑的结构设计以及与岛津涡轮分子泵的高度匹配性，是分析仪器真空系统的可靠配套方案，为高精度分析应用提供了稳定的真空保障
Shimadzu EI-D3203M 涡轮分子泵控制器单元 英文介绍
Shimadzu EI-D3203M is a specialized controller unit designed by Shimadzu Corporation for turbomolecular pumps. It is responsible for driving the pump body to rotate at high speed and achieving precise vacuum control. It plays a key role in analytical instruments such as GC-MS.
Product features (middle 15)
Specially designed to complement the Shimadzu EI-D series turbo molecular pump.
Provide stable electric drive and control for turbo molecular pumps.
Support sensorless control technology, without the need for detection devices such as Hall elements.
Realize high-precision drive control within the low-speed range.
Support regenerative braking function to enhance braking performance.
Compact structural design, saving installation space.
Supports heat dissipation in conjunction with water-cooled or air-cooled systems.
The standard input voltage is AC 200-240V ± 10%.
Equipped with protection mechanisms such as overvoltage and overcurrent.
Suitable for analytical equipment such as gas chromatography-mass spectrometry.
Combined with Shimadzu turbomolecular pump, it can provide high pumping speed and stable ultra-high vacuum.
Low operating noise and vibration levels, suitable for laboratory environments.
Collaborate with Shimadzu pump body to ensure analysis sensitivity and repeatability.
Overall high reliability, suitable for long-term testing and research scenarios.
Easy to integrate into existing instrument platforms.
ending
The Shimadzu EI-D3203M controller unit, with precise drive control, compact structural design, and high compatibility with Shimadzu turbomolecular pumps, is a reliable matching solution for analytical instrument vacuum systems, providing stable vacuum protection for high-precision analysis applications

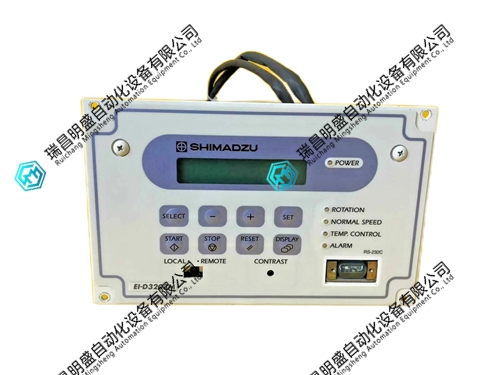

Shimadzu EI-D3203M 涡轮分子泵控制器单元 产品图片
