SMC VQC1A01N-51 通风管 PDF资料
1.产 品 资 料 介 绍：
SMC VQC1A01N-51 是SMC VQC1000系列中的一款高性能五通电磁阀，广泛应用于工业自动化领域的气动控制系统，负责精确控制气流的流向与通断。
产品特点（中间15条）
属于VQC1000系列五通电磁阀，采用底座安装方式。
具备四位双三通机能，为常闭/常闭配置。
标准线圈电压为DC24V，功耗低。
最低工作压力0.15MPa，最高可达0.7MPa。
采用弹性密封方式，适用流体为空气或惰性气体。
响应速度快，适合高频动作场景。
设计寿命长，可靠性高。
防护等级高，具有良好的防尘和防水能力。
阀体为插入式，配管方式为底板侧面配管，结构紧凑。
采用无螺钉快速夹紧构造，便于安装与维护。
集装块内使用多针连接器配线，扩展灵活。
手动操作方法为非锁定推压式。
具备指示灯和过电压保护回路，方便状态监控。
阀体材质为压铸锌，坚固耐用。
工作温度范围宽，适应多种工业环境。
结尾
SMC VQC1A01N-51 电磁阀凭借高响应速度、长寿命、灵活的扩展性以及坚固的防护设计，是构建高效可靠气动控制系统的理想选择，能够满足多种工业自动化应用的需求。
SMC VQC1A01N-51 通风管 英文介绍
SMC VQC1A01N-51 is a high-performance five way solenoid valve in the SMC VQC1000 series, widely used in pneumatic control systems in the field of industrial automation, responsible for precise control of airflow direction and on/off.
Product features (middle 15)
Belonging to the VQC1000 series five way solenoid valve, it adopts a base installation method.
Equipped with a four position dual three-way function, it is in a normally closed/normally closed configuration.
The standard coil voltage is DC24V, with low power consumption.
The minimum working pressure is 0.15MPa, and the maximum can reach 0.7MPa.
Adopting elastic sealing method, suitable for fluids such as air or inert gases.
Fast response speed, suitable for high-frequency action scenarios.
Long design lifespan and high reliability.
High protection level, with good dust and water resistance capabilities.
The valve body is plug-in, and the piping method is bottom plate side piping, with a compact structure.
Adopting a screw free quick clamping structure for easy installation and maintenance.
Multiple pin connectors are used for wiring within the container block, providing flexible expansion.
The manual operation method is non locking push pressure.
Equipped with indicator lights and overvoltage protection circuits for convenient status monitoring.
The valve body material is die cast zinc, which is sturdy and durable.
Wide working temperature range, suitable for various industrial environments.
ending
The SMC VQC1A01N-51 solenoid valve is an ideal choice for building efficient and reliable pneumatic control systems with its high response speed, long lifespan, flexible expandability, and robust protective design, which can meet the needs of various industrial automation applications.

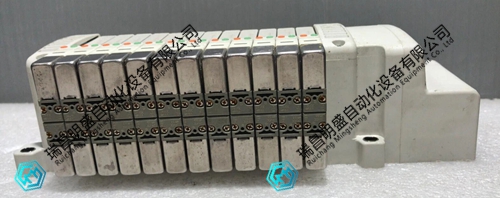

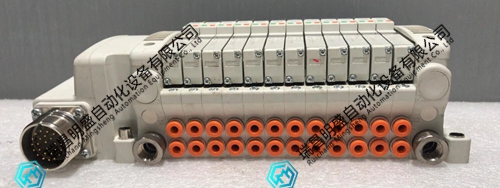

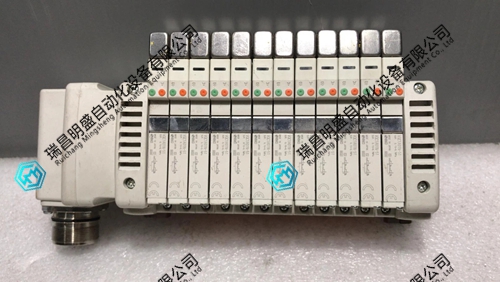

SMC VQC1A01N-51 通风管 产品图片
