XYCOM XVME-682印刷电路板 PDF资料
1.产 品 资 料 介 绍：

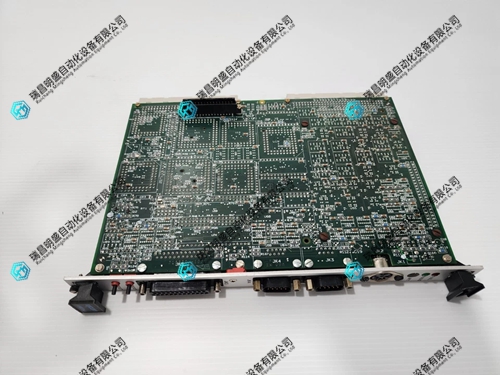

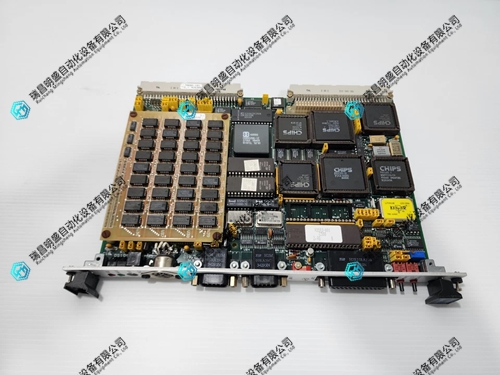

XYCOM XVME-682 印刷电路板（PCB）介绍
XYCOM XVME-682 是一款专为 VMEbus 系统设计的高可靠性印刷电路板，主要用于工业自动化和嵌入式控制环境。该模块负责系统信号的分配、处理以及与其他 VME模块的数据通信，是系统中关键的电子基础组件。
一、产品概述
XVME-682 印刷电路板作为 VME 模块的核心电子平台，集成了电源管理、信号接口及总线控制电路，可保证各类模块之间的数据交换稳定、可靠。它设计紧凑，适合长期连续运行的工业环境。
二、产品特点
高可靠性设计
采用工业级 PCB 材料和严格工艺，具备良好的耐高温、耐湿和抗振性能。多层电路结构
支持复杂信号分布与多层布线，保证高速信号传输的完整性和稳定性。集成总线接口
内置 VMEbus 总线接口，可实现与其他 VME模块的高速数据交换。信号隔离与保护
关键电路采用隔离设计，配备过压、过流保护，保证模块和系统安全。模块化布局
各功能区分明确，便于系统维护和功能升级。支持多种模块扩展
可与 XVME 系列 CPU、IO、控制模块等配合使用，构建完整 VME 系统。工业级环境适应能力
可在 0～65℃ 的工作温度范围内稳定运行，并具备抗电磁干扰能力。易于测试与维护
PCB 上预留诊断测试点，方便工程调试与故障排查。
XYCOM XVME-682印刷电路板 英文介绍
XYCOM XVME-682 Printed Circuit Board (PCB) Introduction
XYCOM XVME-682 is a high reliability printed circuit board designed specifically for VMEbus systems, primarily used in industrial automation and embedded control environments. This module is responsible for the allocation and processing of system signals, as well as data communication with other VME modules, and is a key electronic infrastructure component in the system.
1、 Product Overview
The XVME-682 printed circuit board, as the core electronic platform of the VME module, integrates power management, signal interfaces, and bus control circuits to ensure stable and reliable data exchange between various modules. It is designed to be compact and suitable for long-term continuous operation in industrial environments.
2、 Product Features
High reliability design
Adopting industrial grade PCB materials and strict processes, it has good high temperature resistance, moisture resistance, and vibration resistance.
Multi layer circuit structure
Support complex signal distribution and multi-layer wiring to ensure the integrity and stability of high-speed signal transmission.
Integrated bus interface
Built in VMEbus interface, capable of high-speed data exchange with other VME modules.
Signal isolation and protection
The key circuit adopts isolation design and is equipped with overvoltage and overcurrent protection to ensure the safety of the module and system.
modular layout
Clear differentiation of various functions facilitates system maintenance and functional upgrades.
Support multiple module extensions
Can be used in conjunction with XVME series CPUs, IO, control modules, etc. to build a complete VME system.
Industrial grade environmental adaptability
It can operate stably within the working temperature range of 0-65 ℃ and has the ability to resist electromagnetic interference.
Easy to test and maintain
Reserve diagnostic testing points on the PCB for easy engineering debugging and troubleshooting.
