Xycom XVME-660处理器模块 PDF资料
1.产 品 资 料 介 绍：

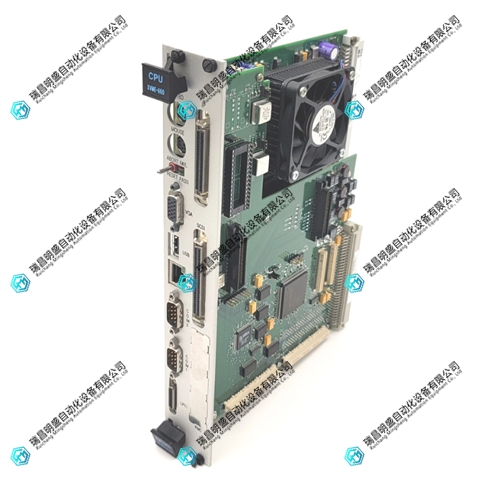

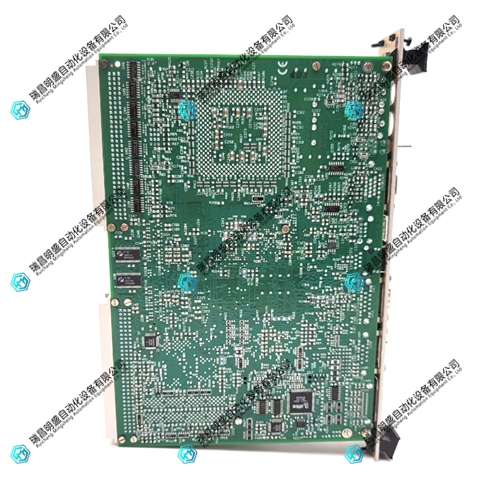

XYCOM XVME-660 处理器模块介绍
XYCOM XVME-660 是一款高性能 VMEbus 架构的单板计算机处理器模块，结合了现代PC处理器技术与工业控制系统的可靠性，适用于对计算能力和系统集成度要求较高的工业环境。
一、产品概述
XVME-660 采用 Intel 低功耗处理器（如 Pentium M 或同级架构），在保持高运算能力的同时降低功耗，可作为 VME 系统的核心控制单元。模块支持 PC/AT 兼容架构，能够运行多种工业操作系统，实现控制、数据处理与系统管理一体化。
二、产品特点
高性能处理器
配备 Pentium M 或同类处理器，主频可达 1.5GHz～1.8GHz，处理复杂控制任务和数据运算能力强。大容量内存支持
支持 256MB 至 1GB DDR 内存（可选 ECC），满足多任务处理及复杂应用需求。先进 VME 总线接口
支持 VME64 标准（A32/A24/A16 地址，D64/D32 数据模式），高速数据交换能力强，兼容性良好。PC/AT 兼容架构
支持通用 PC 软件环境，便于系统开发、升级与软件移植。无头运行模式
支持串口控制台操作，可在无显示设备的情况下进行系统管理与配置，适合嵌入式应用。丰富的接口扩展能力
提供 USB、串口、视频输出等接口，可通过扩展模块增加更多功能。高速缓存设计
内置二级缓存（最高约 2MB），提升数据访问效率和整体运行速度。工业级可靠性
抗干扰能力强，适合长时间连续运行的工业环境。紧凑单槽结构
单槽 VME 模块设计，节省系统空间，便于集成和维护。
Xycom XVME-660处理器模块 英文介绍
Introduction to XYCOM XVME-660 Processor Module
XYCOM XVME-660 is a high-performance single board computer processor module based on the VMEbus architecture, which combines modern PC processor technology with the reliability of industrial control systems. It is suitable for industrial environments that require high computing power and system integration.
1、 Product Overview
The XVME-660 uses Intel low-power processors (such as Pentium M or equivalent architecture) to reduce power consumption while maintaining high computing power, and can serve as the core control unit of VME systems. The module supports PC/AT compatible architecture and can run multiple industrial operating systems, achieving integration of control, data processing, and system management.
2、 Product Features
High performance processor
Equipped with a Pentium M or similar processor, the clock speed can reach 1.5GHz to 1.8GHz, and it has strong processing capabilities for complex control tasks and data operations.
Large capacity memory support
Supports 256MB to 1GB DDR memory (optional ECC) to meet multitasking and complex application requirements.
Advanced VME bus interface
Supports VME64 standard (A32/A24/A16 addresses, D64/D32 data mode), with strong high-speed data exchange capability and good compatibility.
PC/AT compatible architecture
Supports a universal PC software environment, facilitating system development, upgrades, and software porting.
Headless operation mode
Supports serial console operation, allowing system management and configuration without display devices, suitable for embedded applications.
Rich interface expansion capability
Provide interfaces such as USB, serial port, video output, etc., and add more functions through expansion modules.
Cache Design
Built in second level cache (up to about 2MB) improves data access efficiency and overall running speed.
Industrial grade reliability
Strong anti-interference ability, suitable for industrial environments with long-term continuous operation.
Compact single slot structure
Single slot VME module design saves system space and facilitates integration and maintenance.
