XYCOM XVME-566模拟输入卡 PDF资料
1.产 品 资 料 介 绍：

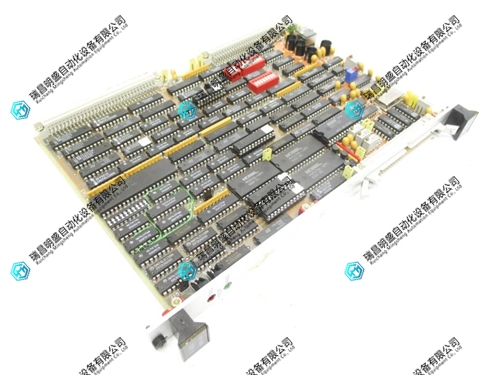

XYCOM XVME-566 模拟输入卡介绍
XYCOM XVME-566 是一款基于 VME 总线的高速模拟输入模块，专为工业现场的大规模数据采集与实时监测设计。该模块兼顾采样速度与系统灵活性，适用于对动态信号响应要求较高的应用环境。
一、产品概述
XVME-566 主要用于多通道模拟信号的采集与数字化处理，能够将现场电压信号快速转换为数字数据，并通过VME系统进行传输与处理。模块内置缓存与控制逻辑，可实现高效、连续的数据采集。
二、产品特点
高速采样能力
支持高达100 kHz级别的数据采样速率，适用于快速变化信号的实时监测。多通道输入设计
提供多路输入配置（如单端与差分模式），可同时采集多个测点信号，提高系统集成度。稳定的A/D转换性能
采用12位模数转换技术，在保证速度的同时提供可靠的数据精度，满足常规工业测量需求。内置大容量缓存
配备双端口缓存存储器，可连续存储大量采样数据，减少对主机系统的依赖。可编程采集序列
用户可自定义通道扫描顺序，实现灵活的数据采集策略，适配复杂工艺流程。通道增益独立设置
每个输入通道支持独立增益调整，提升不同信号范围下的测量准确性。多种触发机制
支持软件触发、外部触发及定时触发方式，满足不同控制与同步需求。自动运行功能
模块可在初始化后独立执行采样任务，降低CPU负载，提高系统效率。良好的系统兼容性
完全兼容VMEbus架构，便于集成到现有工业控制系统中。
XYCOM XVME-566模拟输入卡 英文介绍
Introduction to XYCOM XVME-566 Analog Input Card
XYCOM XVME-566 is a high-speed analog input module based on VME bus, designed specifically for large-scale data acquisition and real-time monitoring in industrial sites. This module balances sampling speed and system flexibility, making it suitable for application environments with high requirements for dynamic signal response.
1、 Product Overview
XVME-566 is mainly used for the acquisition and digital processing of multi-channel analog signals, which can quickly convert on-site voltage signals into digital data and transmit and process them through the VME system. The module has built-in cache and control logic, which enables efficient and continuous data collection.
2、 Product Features
High speed sampling capability
Supports data sampling rates up to 100 kHz, suitable for real-time monitoring of rapidly changing signals.
Multi channel input design
Provide multiple input configurations (such as single ended and differential modes), which can simultaneously collect signals from multiple measurement points and improve system integration.
Stable A/D conversion performance
Adopting 12 bit analog-to-digital conversion technology, it provides reliable data accuracy while ensuring speed, meeting the requirements of conventional industrial measurement.
Built in large capacity cache
Equipped with dual port cache memory, it can continuously store a large amount of sampled data, reducing dependence on the host system.
Programmable acquisition sequence
Users can customize the channel scanning sequence, achieve flexible data collection strategies, and adapt to complex process flows.
Channel gain independent setting
Each input channel supports independent gain adjustment to improve measurement accuracy under different signal ranges.
Multiple triggering mechanisms
Support software triggering, external triggering, and timed triggering methods to meet different control and synchronization requirements.
Automatic operation function
The module can independently perform sampling tasks after initialization, reducing CPU load and improving system efficiency.
Good system compatibility
Fully compatible with the VMEbus architecture, making it easy to integrate into existing industrial control systems.
