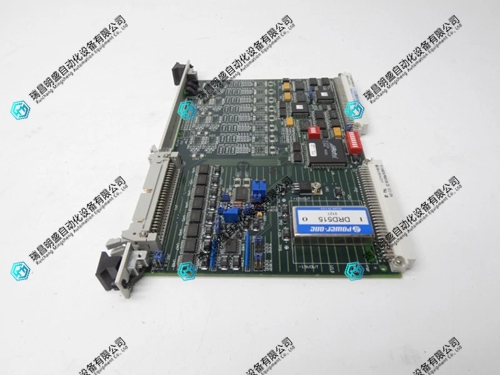

XYCOM XVME-564控制器模块 PDF资料
1.产 品 资 料 介 绍：
XYCOM XVME-564 是一款基于 VME 总线架构的高性能模拟输入控制模块，主要用于工业自动化系统中的数据采集与过程监测。该模块在精度、采样速度以及灵活性方面表现突出，适用于对信号质量要求较高的应用场景。
一、产品概述
XVME-564 集成多通道模拟输入与高速模数转换功能，可对现场电压信号进行实时采集与处理，是工业控制系统中实现精确测量的重要组成部分。模块支持多种输入配置方式，能够适配复杂工况需求。
二、产品特点
高分辨率采集能力
采用16位A/D转换技术，测量精度高，能够捕捉微小信号变化，适用于精密控制场景。多通道灵活配置
支持单端、差分及伪差分输入模式，通道数量丰富，满足多点信号采集需求。多种采样模式
提供顺序扫描、单通道采样、自动扫描及外部触发等多种工作方式，适应不同控制逻辑。可编程增益功能
支持软件调节输入增益，提高弱信号检测能力，增强系统适应性。宽范围信号输入
兼容0–10V、±5V、±10V等多种电压输入范围，便于对接不同类型传感器。高速数据处理能力
具备较高的采样速率，能够满足动态过程控制和快速信号响应需求。中断与定时控制
内置中断与定时功能，支持实时数据处理，提高系统响应效率。良好的系统兼容性
完全兼容VMEbus系统架构，方便集成到现有工业控制平台中。向下兼容设计
可通过配置兼容低分辨率模块，便于系统升级与替换。
XYCOM XVME-564控制器模块 英文介绍
XYCOM XVME-564 is a high-performance analog input control module based on VME bus architecture, mainly used for data acquisition and process monitoring in industrial automation systems. This module performs outstandingly in terms of accuracy, sampling speed, and flexibility, and is suitable for application scenarios that require high signal quality.
1、 Product Overview
XVME-564 integrates multi-channel analog input and high-speed analog-to-digital conversion functions, which can real-time collect and process on-site voltage signals. It is an important component for achieving accurate measurement in industrial control systems. The module supports multiple input configuration methods and can adapt to complex working conditions.
2、 Product Features
High resolution acquisition capability
Using 16 bit A/D conversion technology, it has high measurement accuracy and can capture small signal changes, making it suitable for precision control scenarios.
Multi channel flexible configuration
Supports single ended, differential, and pseudo differential input modes, with a rich number of channels to meet the needs of multi-point signal acquisition.
Multiple sampling modes
Provide multiple working modes such as sequential scanning, single channel sampling, automatic scanning, and external triggering to adapt to different control logics.
Programmable gain function
Support software to adjust input gain, improve weak signal detection capability, and enhance system adaptability.
Wide range signal input
Compatible with multiple voltage input ranges such as 0-10V, ± 5V, ± 10V, etc., making it easy to interface with different types of sensors.
High speed data processing capability
Having a high sampling rate, it can meet the requirements of dynamic process control and fast signal response.
Interruption and timing control
Built in interrupt and timing functions, supporting real-time data processing and improving system response efficiency.
Good system compatibility
Fully compatible with the VMEbus system architecture, making it easy to integrate into existing industrial control platforms.
Downward compatible design
Compatibility with low resolution modules can be configured to facilitate system upgrades and replacements.
