Xycom XVME-113工业控制模块 PDF资料
1.产 品 资 料 介 绍：
Xycom XVME-113 工业控制模块是一款基于VME总线的存储与控制模块，主要用于工业自动化系统中的程序存储、数据缓存和系统扩展管理。它在VME系统中承担核心数据管理和访问功能，为工业控制应用提供可靠支持。
一、模块概述

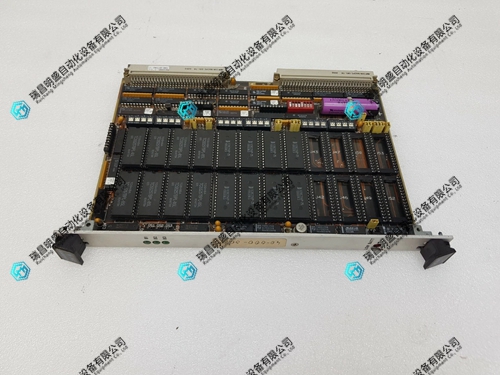

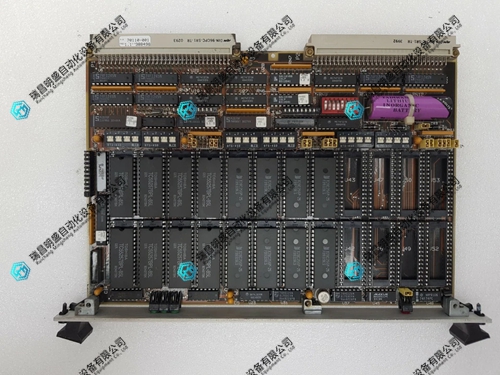

XVME-113是双宽（6U）VME总线模块，集成RAM、EPROM或Flash存储器件。通过标准VME接口与主控系统通信，可作为工业控制系统的数据存储和程序运行平台。模块设计可靠，适合连续运行的工业环境。
二、主要功能
大容量存储：支持程序存储和数据缓存，满足复杂控制系统需求。
VME总线通信：通过总线与控制器或其他模块进行高速数据交互。
双存储区结构：提供两组独立存储区域，便于灵活配置。
断电数据保护：内置备份机制，可保持关键数据不丢失。
掉电保护设计：防止异常电压导致存储数据损坏。
实时时钟功能：支持时间记录与系统同步应用。
三、技术特点
总线类型：VMEbus（符合IEEE 1014标准）
存储容量：RAM 最大约12 MB，EPROM 最大约24 MB，Flash/EEPROM 最大约12 MB
数据宽度：支持32位数据传输
电源要求：+5V DC
工作温度：0℃ ～ 65℃
结构形式：6U 双宽模块
模块设计：工业级可靠性，高稳定性
四、应用领域
工业自动化系统数据存储与管理
嵌入式VME控制系统
生产线控制与实时数据缓存
电力及能源监控系统
军工及科研工业设备
工业过程控制与实时监测系统
Xycom XVME-113工业控制模块 英文介绍
Xycom XVME-113 Industrial Control Module is a storage and control module based on VME bus, mainly used for program storage, data caching, and system expansion management in industrial automation systems. It undertakes core data management and access functions in the VME system, providing reliable support for industrial control applications.
1、 Module Overview
XVME-113 is a dual width (6U) VME bus module that integrates RAM, EPROM, or Flash storage devices. By communicating with the main control system through the standard VME interface, it can serve as a data storage and program running platform for industrial control systems. The module design is reliable and suitable for continuous operation in industrial environments.
2、 Main functions
Large capacity storage: supports program storage and data caching to meet the requirements of complex control systems.
VME bus communication: high-speed data exchange with controllers or other modules through the bus.
Dual storage area structure: Provides two independent storage areas for flexible configuration.
Power outage data protection: Built in backup mechanism to keep critical data from being lost.
Power off protection design: prevents storage data from being damaged due to abnormal voltage.
Real time clock function: supports time recording and system synchronization applications.
3、 Technical features
Bus type: VMEbus (compliant with IEEE 1014 standard)
Storage capacity: RAM up to approximately 12 MB, EPROM up to approximately 24 MB, Flash/EEPROM up to approximately 12 MB
Data width: Supports 32-bit data transmission
Power requirement:+5V DC
Working temperature: 0 ℃~65 ℃
Structural form: 6U double width module
Module design: Industrial grade reliability, high stability
4、 Application Fields
Data Storage and Management of Industrial Automation Systems
Embedded VME Control System
Production line control and real-time data caching
Power and Energy Monitoring System
Military and research industrial equipment
Industrial Process Control and Real time Monitoring System
