KJ4002X1-BA1垂直托架面板底座 PDF资料
1.产 品 资 料 介 绍：

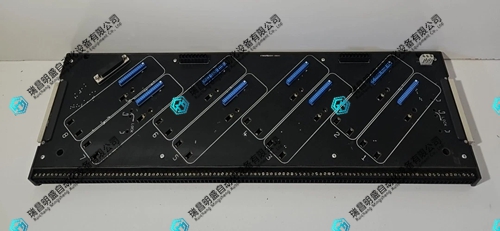

KJ4002X1-BA1 垂直托架面板底座
KJ4002X1-BA1 是一款工业控制系统的结构安装组件，用于为模块化设备和端子块提供垂直方向的固定支撑。它通常配合 I/O 模块或扩展器使用，保证系统在机架或控制柜内稳定安装。
主要功能
支撑与固定：为垂直排列的模块和端子块提供可靠支撑。
结构稳定：减少设备振动和位移，确保长期稳定运行。
布线基础：便于现场布线整齐、有序。
结构特点
垂直托架设计，可承载多层模块和配件。
面板底座结合，形成整体支撑面，便于固定 I/O 模块或端子。
工业级材质，机械强度高，适合长期使用。
安装与使用优势
安装简便，可与 DIN 导轨或面板配合。
提升模块系统的标准化布局。
方便维护和模块拆装。
应用场景
控制柜内部垂直模块安装。
系统需要固定多个 I/O 模块或端子块的场合。
与扩展器、端子块组合使用，提高系统结构紧凑性和可靠性。
KJ4002X1-BA1 是保证控制系统硬件稳固、布线规范的重要支撑件。
KJ4002X1-BA1垂直托架面板底座 英文介绍
KJ4002X1-BA1 vertical bracket panel base
KJ4002X1-BA1 is a structural installation component for industrial control systems, used to provide vertical fixed support for modular equipment and terminal blocks. It is usually used in conjunction with I/O modules or expanders to ensure stable installation of the system in the rack or control cabinet.
Main functions
Support and fixation: Provide reliable support for vertically arranged modules and terminal blocks.
Structural stability: Reduce equipment vibration and displacement to ensure long-term stable operation.
Wiring foundation: facilitates neat and orderly on-site wiring.
structural characteristics
Vertical bracket design, capable of carrying multiple layers of modules and accessories.
The panel base is combined to form an integral support surface, which facilitates the fixation of I/O modules or terminals.
Industrial grade material, high mechanical strength, suitable for long-term use.
Installation and usage advantages
Easy to install, compatible with DIN rails or panels.
Improve the standardized layout of module systems.
Convenient for maintenance and module disassembly and assembly.
Application scenarios
Installation of vertical modules inside the control cabinet.
In situations where multiple I/O modules or terminal blocks need to be fixed in the system.
Combined with expanders and terminal blocks, it improves the compactness and reliability of the system structure.
KJ4002X1-BA1 is an important support component for ensuring the stability of control system hardware and standardized wiring.
