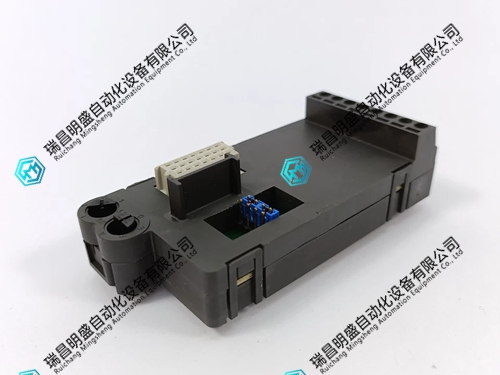

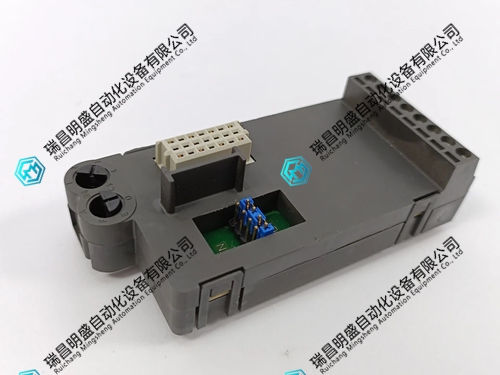

KJ3007X1-EA1 端子块
产品概述
KJ3007X1-EA1 是一款用于工业自动化控制系统的端子块组件，主要用于现场信号或总线通讯线路的接线与过渡连接。它在系统中起到连接、固定和信号分配的作用，是现场布线的重要接口部件。
主要功能
提供稳定可靠的现场接线端子接口
支持工业总线或信号线路接入
实现控制系统与现场设备之间的物理连接
方便模块与外部电缆之间的快速安装与更换
性能特点
工业级结构设计，抗震抗干扰能力强
螺丝压接方式，连接牢固可靠
结构紧凑，便于控制柜内安装
维护简单，接线清晰易识别
应用场景
DCS 控制柜内部布线
现场总线系统接口连接
工业自动化设备信号接线
过程控制系统现场端接
使用说明
端子块本身不具备信号处理功能，仅用于电气连接。安装时需按系统规范完成屏蔽、接地和线径匹配，以保证系统运行稳定。
