KJ3005X1-BA1传感器 PDF资料
1.产 品 资 料 介 绍：

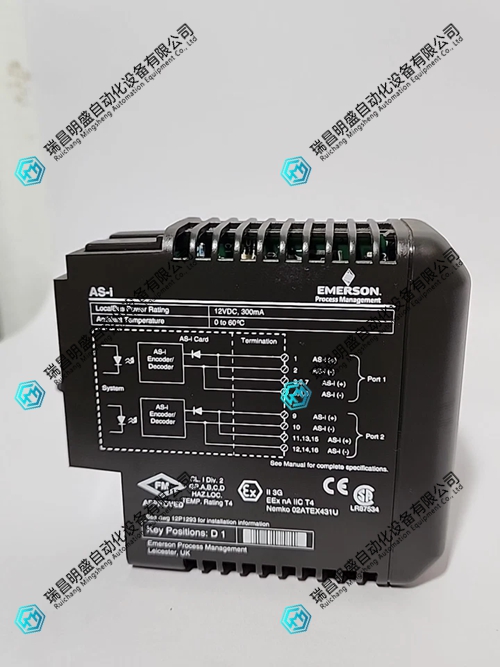

KJ3005X1-BA1 传感器模块 介绍
产品定位
KJ3005X1-BA1 是一款用于过程自动化系统的 传感器输入/接口模块，用于读取各类现场传感器的模拟信号，并将其转换成可供控制系统处理的数字数据。
核心功能
接收现场传感器输出的模拟信号（如 4–20 mA、0–10 V 等）
进行模拟信号的转换和采样处理
将采集到的传感器数据传递至控制系统
支持多种传感器类型（具体取决于模块设计）
主要用途
温度、压力、液位等现场过程变量的采集
与控制系统连接，实现生产过程的监测与反馈
用于过程控制系统的闭环调节
作为现场测量信号进入控制系统的接口
性能特点
多通道输入设计，提高现场测量效率
良好的抗干扰能力，适合工业现场环境
与过程控制系统兼容性高
模块化结构，便于更换与维护
安装与使用
该模块通常安装在控制系统的 I/O 机架或底板上，需要在控制系统中进行参数设置和通道配置，才能正常采集和上传现场传感器数据。模块本身不包含控制逻辑，只负责信号采集和传输。
总结
KJ3005X1-BA1 传感器模块是一种在自动化控制系统中负责采集现场传感器信号的模块，通过将模拟信号转换成数字数据，实现现场变量的实时监测和控制系统的数据输入。
KJ3005X1-BA1传感器 英文介绍
Introduction to KJ3005X1-BA1 Sensor Module
Product positioning
KJ3005X1-BA1 is a sensor input/interface module for process automation systems, used to read analog signals from various on-site sensors and convert them into digital data that can be processed by the control system.
core functionality
Receive analog signals from on-site sensors (such as 4-20 mA, 0-10 V, etc.)
Convert and sample analog signals
Transfer the collected sensor data to the control system
Supports multiple sensor types (depending on module design)
main purpose
Collection of on-site process variables such as temperature, pressure, and liquid level
Connect with the control system to achieve monitoring and feedback of the production process
Closed loop regulation for process control systems
As an interface for on-site measurement signals to enter the control system
Performance Characteristics
Multi channel input design improves on-site measurement efficiency
Good anti-interference ability, suitable for industrial site environment
High compatibility with process control systems
Modular structure, easy to replace and maintain
Installation and Usage
This module is usually installed on the I/O rack or motherboard of the control system, and requires parameter settings and channel configuration in the control system to collect and upload on-site sensor data normally. The module itself does not contain control logic and is only responsible for signal acquisition and transmission.
summary
KJ3005X1-BA1 sensor module is a module responsible for collecting on-site sensor signals in automation control systems. By converting analog signals into digital data, it achieves real-time monitoring of on-site variables and data input for control systems.
