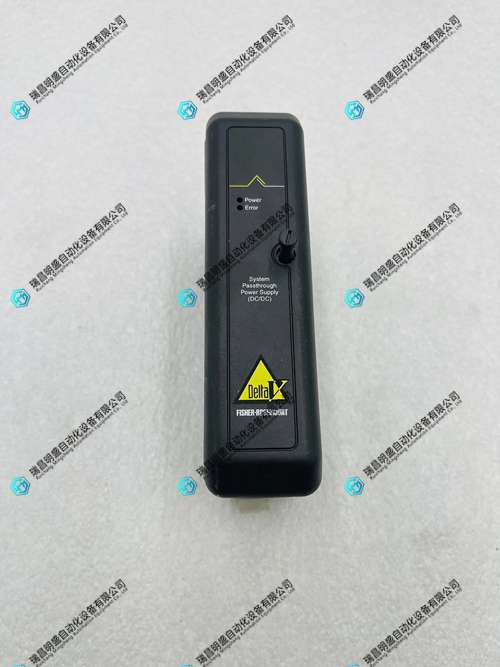

KJ1501X1-BB1电源模块 PDF资料
1.产 品 资 料 介 绍：
KJ1501X1-BB1 是 Emerson DeltaV 分布式控制系统中的直流电源模块，属于系统级 DC/DC 供电单元，主要为控制器及I/O模块提供稳定的内部直流电源。
一、产品定位
该模块用于 DeltaV 系统机柜内部电源供给，通常作为系统基础供电组件安装在电源底板或专用电源槽位中。
它将外部直流输入转换为系统所需的稳定直流输出，保障控制系统持续运行。
二、主要特点
直流输入设计
适用于直流供电环境，常见为 24V DC 输入系统。稳定直流输出
输出为系统内部标准电压（通常为12V DC），用于驱动控制器及相关模块。高可靠性结构
具备工业级抗干扰能力，适合连续运行环境。支持冗余配置
可与同型号模块组成双电源冗余结构，提高系统可靠性。紧凑模块化设计
安装方便，维护简单，便于系统扩展。
三、典型技术参数
输入类型：直流输入
常见输入电压：24V DC
输出电压：12V DC
输出电流：根据系统负载配置
安装方式：DeltaV 系统电源底板安装
冗余支持：支持双电源结构
KJ1501X1-BB1电源模块 英文介绍
KJ1501X1-BB1 is a DC power module in Emerson DeltaV distributed control system, belonging to the system level DC/DC power supply unit, mainly providing stable internal DC power for controllers and I/O modules.
1、 Product positioning
This module is used for internal power supply in the DeltaV system cabinet and is usually installed as a basic power supply component in the power supply motherboard or dedicated power slot.
It converts external DC input into stable DC output required by the system, ensuring the continuous operation of the control system.
2、 Main features
DC input design
Suitable for DC power supply environment, commonly used as 24V DC input system.
Stable DC output
The output is the internal standard voltage of the system (usually 12V DC), used to drive the controller and related modules.
High reliability structure
Equipped with industrial grade anti-interference capability, suitable for continuous operation environment.
Support redundant configuration
It can form a dual power redundancy structure with modules of the same model to improve system reliability.
Compact modular design
Easy to install, simple to maintain, and convenient for system expansion.
3、 Typical technical parameters
Input type: DC input
Common input voltage: 24V DC
Output voltage: 12V DC
Output current: configured according to system load
Installation Method: DeltaV System Power Base Plate Installation
Redundancy support: Supports dual power supply structure
