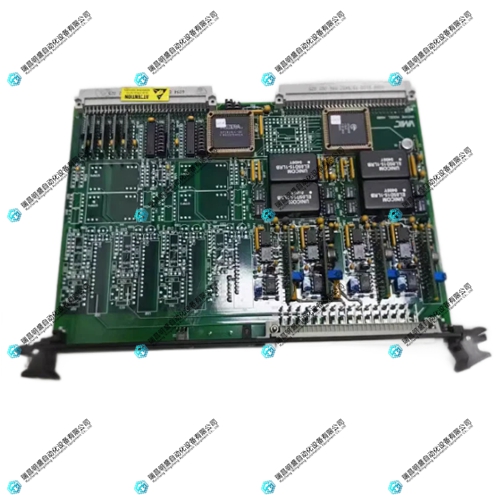

IC697VAL132控制器模块 PDF资料
1.产 品 资 料 介 绍：
IC697VAL132 控制器模块说明
IC697VAL132 是 GE Fanuc 90‑70 系列 PLC 系统中的 模拟量输入模块，用于将现场的模拟信号采集并转换为数字信号供 PLC CPU 处理。它不是独立的可编程控制器，而是用于扩展 PLC 系统输入功能的模块。
一、模块功能与定位
二、主要技术规格
输入通道：
分辨率：12 位 A/D 转换
隔离性能：输入与背板隔离，提高抗干扰能力
供电方式：从 PLC 背板提供 5V DC 电源
安装方式：插入 PLC 机架的 I/O 插槽，通过背板与 CPU 通信
兼容性：适用于 90‑70 系列 PLC 系统，部分 PACSystems 系统兼容
三、应用领域
读取压力、流量、温度等模拟变量
工业过程数据采集与监控
PLC 控制逻辑中需要模拟输入的场合
自动化生产线及过程控制系统
IC697VAL132控制器模块 英文介绍
IC697VAL132 Controller Module Description
IC697VAL132 is an analog input module in GE Fanuc 90-70 series PLC systems, used to collect and convert on-site analog signals into digital signals for PLC CPU processing. It is not an independent programmable controller, but a module used to expand the input functions of PLC systems.
1、 Module function and positioning
Module type: Analog input module
Series: 90-70 PLC
Function: Convert the current signal output by the on-site sensor into a digital signal and transmit it to the PLC CPU
Applicable scenario: In industrial process control, it is necessary to read analog signals
2、 Main technical specifications
Input channel:
Supports multiple differential inputs or single ended inputs
The input type is current signal (such as 0~20mA, 4~20mA, 5~25mA)
Resolution: 12 bit A/D conversion
Isolation performance: Input and backplane isolation to improve anti-interference ability
Power supply method: 5V DC power is provided from the PLC backplane
Installation method: Insert into the I/O slot of the PLC rack and communicate with the CPU through the backplane
Compatibility: Suitable for 90-70 series PLC systems, partially compatible with PACSystems systems
3、 Application Fields
Read analog variables such as pressure, flow rate, temperature, etc
Industrial process data collection and monitoring
In situations where analog inputs are required in PLC control logic
Automated production line and process control system
