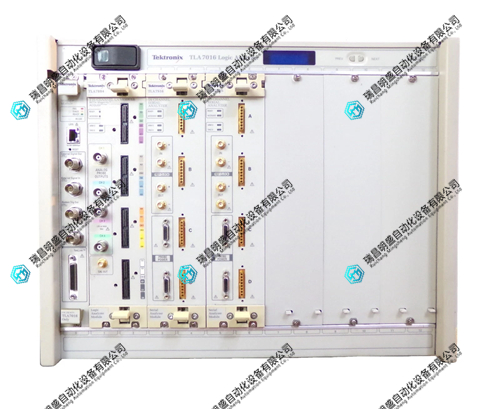

Tektronix TLA7016逻辑分析仪  PDF资料

1.产 品 资 料 介 绍：

Tektronix TLA7016 是泰克 TLA7000 系列模块化台式逻辑分析仪主机，需搭配 TLA 模块才能构成完整分析系统。

特点

1. 模块化主机：6 插槽设计，可灵活配置逻辑分析仪和码型发生器模块。

2. 强扩展能力：支持多台级联，最多 8 台组成系统，提供 6,528 个逻辑通道。

3. 综合视图：通过 iView 技术可与泰克 TDS 示波器关联，同步观测模拟与逻辑信号。

4. 内置 Windows PC：运行 Windows XP Professional，操作界面熟悉，支持联网。

5. 远程控制：支持 Remote Desktop 及 .NET/COM/DCOM 远程控制与监测。

参数

1. 插槽数：6 个 TLA 模块插槽

2. 主机最大通道：816 通道

3. 系统最大通道：6,528 通道（8 台级联）

4. 状态时钟速率：最高 1.4 GHz

5. 功耗：最大 1,900 W

应用领域

1. 处理器与总线调试

2. 高速串行信号验证（PCIe、SATA 等）

3. 嵌入式软件集成调试

4. 内存接口验证（DDR2/DDR3 等）

5. MIPI 等移动接口协议分析

结尾说明：Tektronix TLA7016 为 TLA7000 系列台式逻辑分析仪主机，需搭配 TLA7PC1 控制器或自备 PC 使用，适用于处理器/总线调试、高速串行验证及嵌入式开发等场景。

Tektronix TLA7016逻辑分析仪   英文介绍

Colleagues who do hardware debugging and semiconductor equipment maintenance are familiar with the Tektronix TLA7016 logic analyzer, which is a modular logic analysis host used by Tektronix to capture high-speed digital signals and troubleshoot timing issues with buses and control boards.

Product Features

1. Modular host design, comes with 6 slots, can be matched with different acquisition modules as needed

2. Strong channel expansion capability, cascading multiple hosts, capable of supporting synchronous measurement of multiple channels

3. Sensitive signal capture, capable of capturing digital faults such as glitches and timing conflicts that are difficult to detect

4. Support timing and status synchronization analysis, convenient for bus protocol and embedded system debugging

5. Good compatibility, easy disassembly and assembly of matching probes, and simple on-site debugging of equipment

Product Specifications

1. Number of host module slots: 6

2. Supports up to 8 hosts cascaded and up to 48 modules

3. A single device can support up to 6528 channels of data collection

4. Maximum power consumption 1900W

5. Supports remote control from a computer and allows offline viewing of collected waveforms

Application Areas

1. Troubleshooting of timing faults in semiconductor equipment control boards

2. Debugging and verification of embedded hardware and processor bus

3. Research and development of high-speed digital circuits and hardware reliability testing

4. Digital signal fault diagnosis of industrial automation equipment

5. Replacement and maintenance of spare parts for laboratory and production line testing instruments

Overall, the Tektronix TLA7016 logic analyzer has strong scalability and outstanding multi-channel synchronous acquisition capabilities, and is often used in equipment board maintenance and digital system debugging.
