HiTek E19306280电源模块 PDF资料

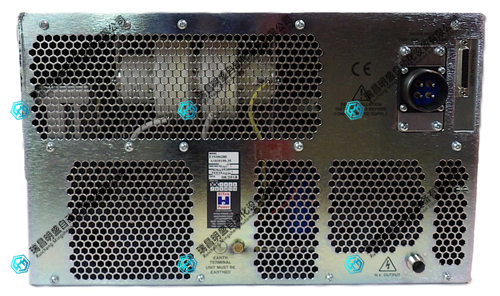

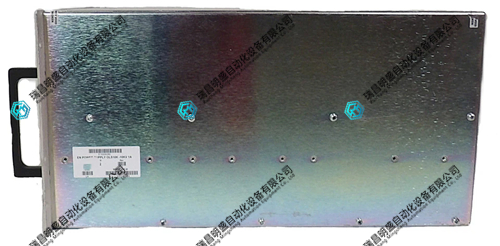

HiTek E19306280 是 Applied Materials（应用材料）系统配套的高压电源模块，实际制造商为 HiTek Power，对应型号 OLS10K-103-22。
特点
高功率高压输出：属于 OLS10K 系列 10kW 单输出高压电源，专为严苛的工业与半导体工艺环境设计。
专利灭弧保护：搭载 HiTek 专有的 Arc Count and Extinguish（ACE）系统，可检测并熄灭负载端电弧，同时保护电源与负载免受损坏。
6U 机架式高密度设计：采用标准 6U 机架安装，功率密度达 169 W/L，在满载运行时仍可紧贴机架安装，节省空间。
灵活的接口配置：支持模拟控制接口，可选配 RS232 远程接口，用于控制与监控电源运行状态。
CE 认证与工业可靠性：符合欧盟低电压指令，设计满足 SEMI S2 电气安全要求，适用于 24/7 连续生产。
参数
输出功率：10 kW（最大额定电压与电流下）。
输入电压：三相 208VAC（OLS10K 标准型号）。
输出极性：正极性或负极性（订购时指定）。
冷却方式：强制风冷，最大进气温度 40°C。
制造商型号：OLS10K-103-22 / Model No: OLS10K A1039190-35。
应用领域
电子束与离子束系统：为电子束、离子束设备提供高压偏置电源。
离子注入装置：作为离子注入机的配套高压电源使用。
X 射线系统：适用于 X 射线发生装置的高压供电。
离子与化学气相沉积：用于离子束沉积、化学气相沉积等薄膜工艺。
激光与高压脉冲发生器：作为激光器或高压脉冲发生器的偏置电源。
结尾说明：HiTek E19306280（OLS10K-103-22）为 10kW 高压电源模块，用于 AMAT 系统配套，适用于电子束、离子注入及 X 射线等需要高压供电的半导体与工业设备。
HiTek E19306280电源模块 英文介绍
HiTek E19306280 is a high-voltage power module that is compatible with Applied Materials systems. The actual manufacturer is HiTek Power, corresponding to model OLS10K-103-22.
Characteristics
High power and high voltage output: It belongs to the OLS10K series 10kW single output high voltage power supply, designed specifically for harsh industrial and semiconductor process environments.
Patent arc extinguishing protection: Equipped with HiTek's proprietary Arc Count and Extinguish (ACE) system, it can detect and extinguish load side arcs, while protecting the power supply and load from damage.
6U rack mounted high-density design: using standard 6U rack installation, with a power density of 169 W/L, it can still be installed close to the rack during full load operation, saving space.
Flexible interface configuration: Supports analog control interface and optional RS232 remote interface for controlling and monitoring power operation status.
CE certification and industrial reliability: compliant with the EU Low Voltage Directive, designed to meet SEMI S2 electrical safety requirements, suitable for 24/7 continuous production.
parameter
Output power: 10 kW (at maximum rated voltage and current).
Input voltage: Three phase 208VAC (OLS10K standard model).
Output polarity: positive or negative polarity (specified when ordering).
Cooling method: forced air cooling, maximum intake temperature of 40 ° C.
Manufacturer model: OLS10K-103-22/Model No: OLS10K A1039190-35.
Application Areas
Electron beam and ion beam system: provides high-voltage bias power supply for electron beam and ion beam equipment.
Ion implantation device: used as a supporting high-voltage power supply for ion implantation machines.
X-ray system: High voltage power supply suitable for X-ray generating devices.
Ion and chemical vapor deposition: used in thin film processes such as ion beam deposition and chemical vapor deposition.
Laser and High Voltage Pulse Generator: Used as a bias power supply for lasers or high voltage pulse generators.
Conclusion: HiTek E19306280 (OLS10K-103-22) is a 10kW high-voltage power module used in conjunction with AMAT systems. It is suitable for semiconductor and industrial equipment that require high-voltage power supply, such as electron beams, ion implantation, and X-rays.
