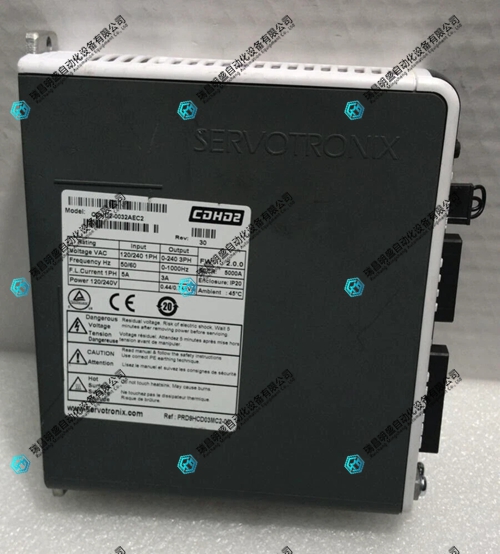

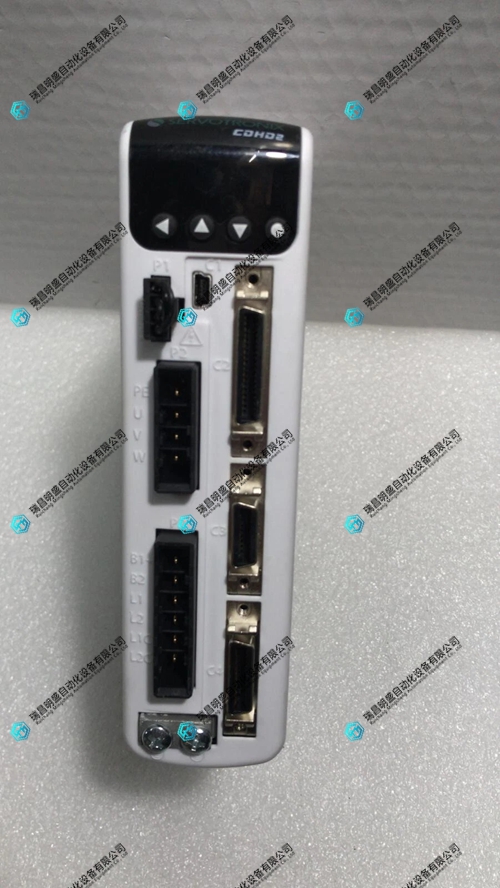

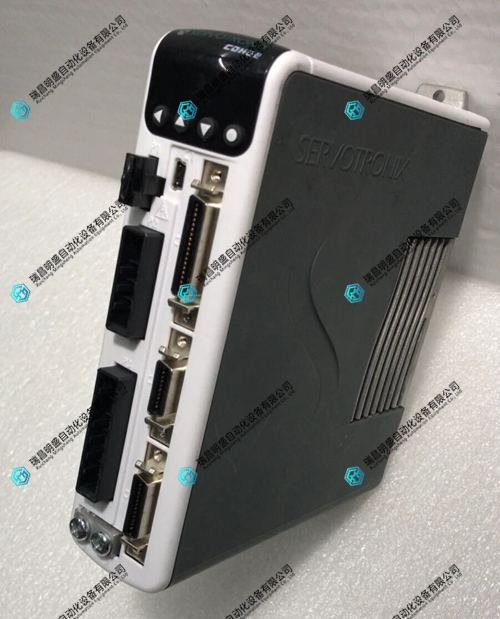

CDHD2-0032AEC2 数字伺服驱动器 PDF资料
1.产 品 资 料 介 绍：
CDHD2-0032AEC2 是高创推出的第二代 CDHD2 系列高性能伺服驱动器，专为需要高精度、高效率运动控制的工业设备而设计。以下是该型号的核心特点与应用领域：
产品特点
电流环频率响应达 3~5kHz，动态响应能力强。
支持多种永磁伺服电机及多种反馈装置。
内置高级自整定与抑振控制算法，有效消除机械共振。
支持刚性及柔性龙门系统，配备第二编码器接口用于双闭环控制。
内置位置比较输出模块及误差补偿表。
标配安全转矩关断功能，保障运行安全。
内置操作面板，便于现场配置与诊断。
配套调试软件，实现一站式参数优化。
应用领域
半导体晶圆划片机等精密加工设备。
电子装配与自动化生产线。
工业机器人与多轴联动控制。
数控机床与精密定位平台。
医疗设备中的精密运动机构。
移动 AGV 与物流自动化设备。
光伏与平板显示制程设备。
各类需要高精度多轴运动控制的自动化场景。
结尾
综上所述，CDHD2-0032AEC2 凭借高带宽电流环、先进自整定算法及丰富控制功能，是半导体、电子装配及精密自动化设备中高性能伺服驱动方案的理想选择。
CDHD2-0032AEC2 is the second-generation CDHD2 series high-performance servo drive launched by Gaochuang, designed specifically for industrial equipment that requires high-precision and high-efficiency motion control. The following are the core features and application areas of this model:
Product Features
The frequency response of the current loop reaches 3-5 kHz, with strong dynamic response capability.
Support multiple permanent magnet servo motors and feedback devices.
Built in advanced self-tuning and vibration suppression control algorithms effectively eliminate mechanical resonance.
Supports both rigid and flexible gantry systems, equipped with a second encoder interface for dual closed-loop control.
Built in position comparison output module and error compensation table.
Standard safety torque shutdown function ensures safe operation.
Built in operation panel for easy on-site configuration and diagnosis.
Equipped with debugging software to achieve one-stop parameter optimization.
Application Domain
Precision processing equipment such as semiconductor wafer cutting machines.
Electronic assembly and automation production line.
Industrial robots and multi axis linkage control.
Numerical control machine tools and precision positioning platforms.
Precision motion mechanisms in medical equipment.
Mobile AGV and logistics automation equipment.
Photovoltaic and flat panel display process equipment.
Various automation scenarios that require high-precision multi axis motion control.
ending
In summary, CDHD2-0032AEC2 is an ideal choice for high-performance servo drive solutions in semiconductor, electronic assembly, and precision automation equipment due to its high bandwidth current loop, advanced self-tuning algorithm, and rich control functions.
