1.产 品 资 料 介 绍：

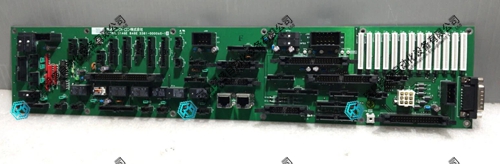

TEL 3308-000065-13 是东京电子半导体设备中的一款专用印刷电路板，型号标识为Stage Base Base Board（工作台基板），用于设备内部的信号与电源连接。以下是该型号的核心特点与应用领域：
产品特点
东京电子原厂制造的专用PCB组件。
型号标识为Stage Base Board（工作台基板）。
用于半导体设备内部工作台的信号与电源连接。
采用工业级多层PCB设计，符合半导体设备可靠性标准。
日本制造，工艺品质有保障。
作为设备内部组件，需在配套的TEL设备中使用。
多为设备维修与备件更换用途。
具体参数以TEL对应设备的技术手册为准。
应用领域
半导体光刻与刻蚀设备的内部基板。
晶圆工作台的信号与电源接口。
TEL半导体设备的现场维修与备件更换。
半导体制造工厂的设备维护。
设备翻新与延寿升级的配件供应。
晶圆传输与定位系统的支撑组件。
二手半导体设备的修复与配套。
设备集成商配套TEL系统的硬件组件。
结尾
综上所述，TEL 3308-000065-13 作为TEL半导体设备中的工作台基板PCB，主要负责设备内部的信号与电源连接，是半导体制造设备维护与备件更换中的重要配件。
TEL 3308-000065-13 is a specialized printed circuit board in Tokyo Electronic Semiconductor Equipment, with the model number labeled as Stage Base Board, used for connecting signals and power supplies inside the equipment. The following are the core features and application areas of this model:
Product Features
Specialized PCB components manufactured by Tokyo Electronics Factory.
The model is labeled as Stage Base Board.
Used for connecting signals and power to the internal workbench of semiconductor equipment.
Adopting industrial grade multi-layer PCB design, it meets the reliability standards of semiconductor equipment.
Made in Japan, with guaranteed craftsmanship and quality.
As an internal component of the device, it needs to be used in the accompanying TEL equipment.
Mostly for equipment maintenance and spare parts replacement purposes.
The specific parameters are subject to the technical manual of the corresponding TEL equipment.
Application Domain
The internal substrate of semiconductor lithography and etching equipment.
The signal and power interface of the wafer workbench.
On site maintenance and spare parts replacement of TEL semiconductor equipment.
Equipment maintenance in semiconductor manufacturing factories.
Supply of accessories for equipment refurbishment and life extension upgrades.
Supporting components for wafer transfer and positioning systems.
Repair and matching of second-hand semiconductor equipment.
The hardware components of the TEL system provided by the equipment integrator.
ending
In summary, TEL 3308-000065-13, as the workbench PCB in TEL semiconductor equipment, is mainly responsible for the internal signal and power connection of the equipment. It is an important accessory in the maintenance and spare parts replacement of semiconductor manufacturing equipment.
