XTRAMUS B-00-23L4GMPA2 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
XTRAMUS 型号 B-00-23L4GMPA2 印刷电路板，是一款专为网络通信设备测试设计的核心功能板卡，具备以下特点：
采用高密度多层PCB设计，集成度高，信号完整性良好。
板载高性能网络处理器，支持线速流量生成与分析。
提供多个高速以太网测试端口，适配高端口密度测试环境。
支持多种网络速率模式，覆盖主流以太网标准。
基于硬件的线速流量生成，确保测试精度与一致性。
单端口可生成多条独立数据流，满足复杂测试场景需求。
支持多种数据帧结构与协议头部配置，协议覆盖全面。
板载硬件计数器，提供基于端口和数据流的实时统计信息。
具备错误帧生成功能，支持CRC错误、超短帧、超长帧等极限测试。
集成智能抓包技术，可按多种条件灵活捕获数据包。
支持突发、连续、定时等多种流量发送模式，模拟真实网络场景。
专为机箱式平台设计，支持热插拔，维护便捷。
支持多用户共享同一板卡的不同端口，资源利用率高。
配套完善的软件工具，支持多种标准性能测试用例。
出厂经严格功能测试与老化验证，确保长期运行稳定可靠。
结尾
综上，XTRAMUS B-00-23L4GMPA2 印刷电路板凭借多速率支持、强大的流量生成与分析能力以及灵活的部署方式，是网络设备性能测试与验证的理想工具。
XTRAMUS B-00-23L4GMPA2 印刷电路板 英文介绍
XTRAMUS model B-00-23L4GMPA2 printed circuit board is a core functional board designed specifically for testing network communication equipment, with the following characteristics:
Adopting high-density multi-layer PCB design, high integration and good signal integrity.
Onboard high-performance network processor, supporting line speed traffic generation and analysis.
Provide multiple high-speed Ethernet test ports to adapt to high port density testing environments.
Supports multiple network speed modes and covers mainstream Ethernet standards.
Hardware based line speed traffic generation ensures testing accuracy and consistency.
A single port can generate multiple independent data streams, meeting the requirements of complex testing scenarios.
Supports multiple data frame structures and protocol header configurations, with comprehensive protocol coverage.
Onboard hardware counters provide real-time statistical information based on ports and data streams.
Equipped with error frame generation function, supporting CRC error, ultra short frame, ultra long frame and other extreme tests.
Integrated intelligent packet capture technology can flexibly capture data packets according to various conditions.
Support multiple traffic transmission modes such as burst, continuous, and timed, simulating real network scenarios.
Specially designed for chassis platforms, supporting hot swapping and easy maintenance.
Support multiple users to share different ports on the same board, with high resource utilization.
Well equipped software tools that support multiple standard performance test cases.
After strict functional testing and aging verification at the factory, it ensures long-term stable and reliable operation.
ending
In summary, XTRAMUS B-00-23L4GMPA2 printed circuit board is an ideal tool for network device performance testing and verification due to its multi rate support, powerful traffic generation and analysis capabilities, and flexible deployment methods.

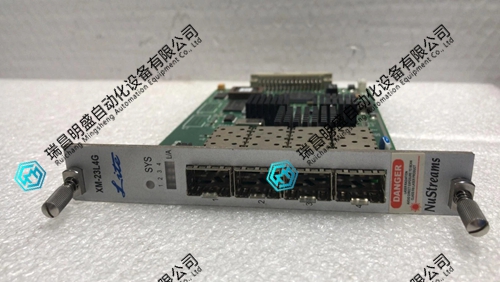

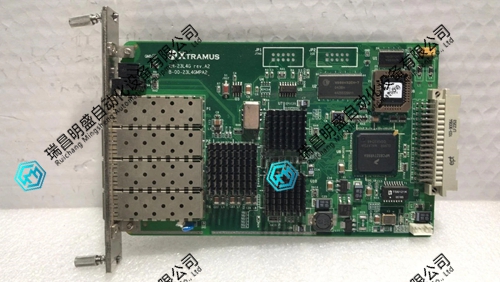

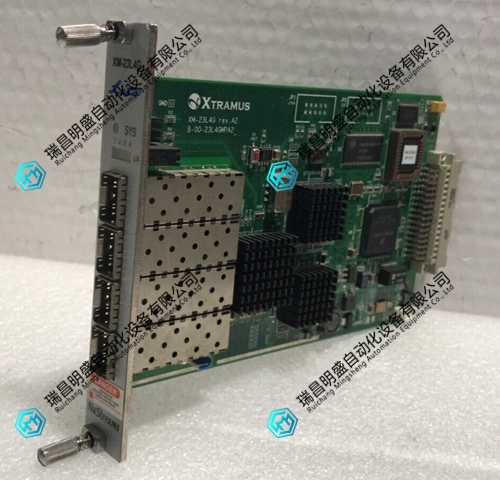

XTRAMUS B-00-23L4GMPA2 印刷电路板 产品图片
