ACS SB-18422-660/LF 运动控制板 PDF资料
1.产 品 资 料 介 绍：
ACS 型号 SB-18422-660/LF 运动控制板，是一款专为精密自动化设备设计的高性能运动控制板卡，具备以下特点：
轴控制能力强，支持多轴联动及独立运行模式。
板载高算力DSP+FPGA架构，实时响应性能优秀。
支持多种编码器格式（方波/正余弦/绝对值）。
采用高速串行总线背板通信，拓展性强。
具备在线轨迹规划能力，加减速曲线可编程。
内置高阶滤波器，可抑制机械共振。
输出指令平滑，可有效减少电机发热。
带隔离的通用I/O接口，便于接驳各类传感器。
支持位置/速度/转矩三种控制模式切换。
提供实时诊断接口，方便监测轴状态。
电源管理设计完善，支持热插拔保护。
板卡尺寸紧凑，适配标准3U/6U背板。
工作温度范围宽（0°C~+60°C），适应性强。
驱动软件库功能丰富，缩短开发周期。
出厂前经高温老化及振动测试，品质可靠。
结尾
综上所述，ACS SB-18422-660/LF 运动控制板在高算力平台、灵活控制模式及工业级可靠性方面表现均衡，是精密运动系统集成中的理想执行层组件。
ACS SB-18422-660/LF 运动控制板 英文介绍
The ACS model SB-18422-660/LF motion control board is a high-performance motion control board designed specifically for precision automation equipment, with the following features:
Strong axis control capability, supporting multi axis linkage and independent operation modes.
The onboard high computing power DSP+FPGA architecture has excellent real-time response performance.
Supports multiple encoder formats (square wave/sine cosine/absolute value).
Adopting high-speed serial bus backplane communication, with strong scalability.
Capable of online trajectory planning and programmable acceleration and deceleration curves.
Built in high-order filter can suppress mechanical resonance.
Smooth output instructions can effectively reduce motor heating.
A universal I/O interface with isolation, convenient for connecting various sensors.
Support switching between three control modes: position, speed, and torque.
Provide real-time diagnostic interface for easy monitoring of axis status.
The power management design is complete and supports hot plug protection.
The board size is compact and compatible with standard 3U/6U backboards.
Wide working temperature range (0 ° C~+60 ° C), strong adaptability.
The driver software library has rich functions and shortens the development cycle.
Before leaving the factory, it undergoes high-temperature aging and vibration testing, ensuring reliable quality.
ending
In summary, the ACS SB-18422-660/LF motion control board exhibits balanced performance in terms of high computing power platform, flexible control mode, and industrial grade reliability, making it an ideal execution layer component for precision motion system integration.

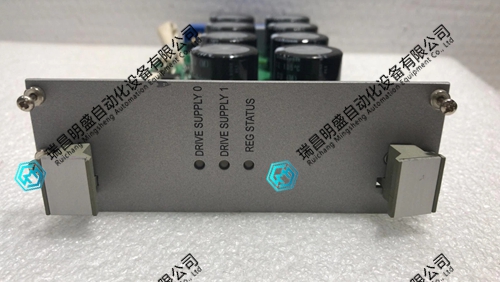

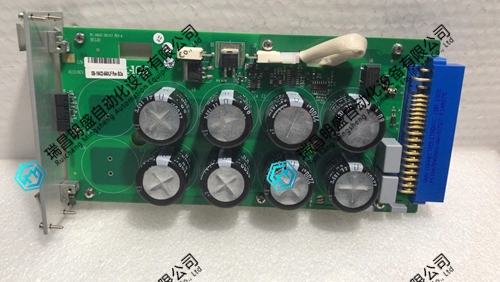

ACS SB-18422-660/LF 运动控制板 产品图片
