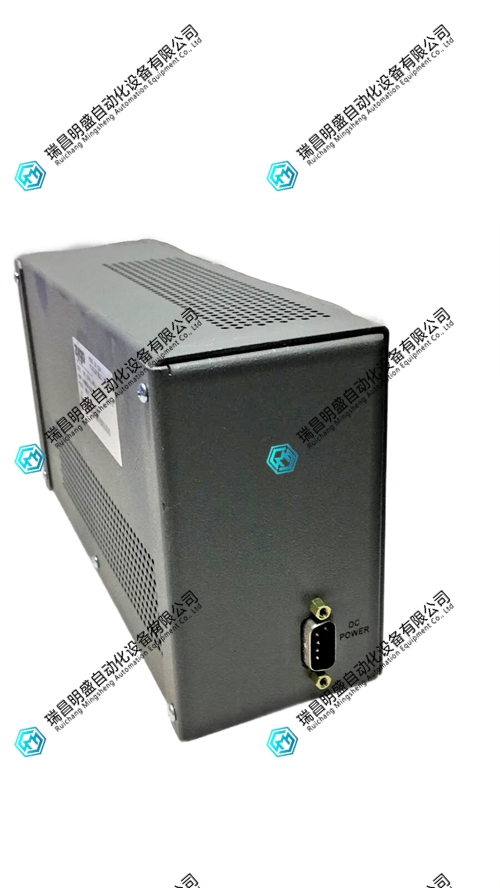

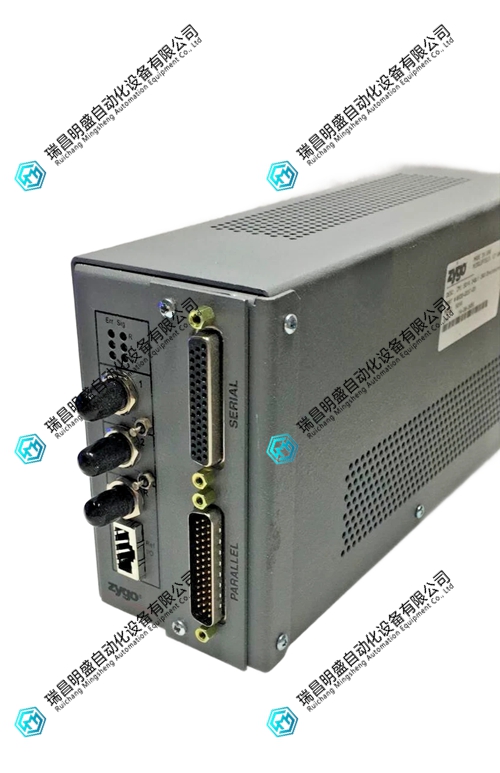

Zygo 8020-0237-03 控制器模块 PDF资料
1.产 品 资 料 介 绍：
Zygo 型号 8020-0237-03 控制器模块，是一款用于精密干涉测量或光学轮廓仪系统的运动控制与数据采集核心模块，具备以下特点：
采用专用数字信号处理器（DSP），运算实时性强。
支持压电陶瓷（PZT）执行器的高精度驱动控制。
内置高分辨率位置反馈接口，适配多种位移传感器。
相位解算算法优化，测量重复性优于纳米级。
采样速率可调，适应静态及动态扫描测量模式。
控制环路带宽高，抗外部振动干扰能力强。
通讯接口支持USB及高速以太网，方便上位机连接。
前面板LED指示灯，显示运行及故障状态。
触发输入/输出接口，便于与其他设备同步。
板载非易失性存储器，保存校准及配置参数。
铝合金屏蔽外壳，降低电磁干扰影响。
工作温度范围宽，适应实验室及工业现场。
模块化设计，与Zygo主机系统即插即用。
出厂经激光干涉仪全面校准，精度有保障。
固件可升级，便于测量模式扩展与优化。
结尾
综上，Zygo 8020-0237-03 控制器模块以纳米级测量精度、高速信号处理及良好的系统兼容性，适用于精密光学制造与科研检测领域。
Zygo model 8020-0237-03 controller module is a motion control and data acquisition core module used for precision interferometry or optical profilometer systems, with the following characteristics:
Using a dedicated digital signal processor (DSP) with strong real-time performance.
Support high-precision drive control of piezoelectric ceramic (PZT) actuators.
Built in high-resolution position feedback interface, compatible with various displacement sensors.
Optimization of phase calculation algorithm, with better measurement repeatability than nanometer level.
The sampling rate can be adjusted to adapt to both static and dynamic scanning measurement modes.
The control loop has a high bandwidth and strong resistance to external vibration interference.
The communication interface supports USB and high-speed Ethernet, making it convenient for the upper computer to connect.
The front panel LED indicator light displays the operating and fault status.
Trigger input/output interfaces for easy synchronization with other devices.
Onboard non-volatile memory, storing calibration and configuration parameters.
Aluminum alloy shielding shell reduces the impact of electromagnetic interference.
Wide working temperature range, suitable for laboratory and industrial sites.
Modular design, plug and play with Zygo host system.
The laser interferometer has been fully calibrated before leaving the factory, ensuring high accuracy.
The firmware can be upgraded for easy expansion and optimization of measurement modes.
ending
In summary, the Zygo 8020-0237-03 controller module is suitable for precision optical manufacturing and scientific research testing fields due to its nanometer level measurement accuracy, high-speed signal processing, and good system compatibility.
