TEL 3M80-003135-13 印刷电路板 PDF资料
1.产 品 资 料 介 绍：

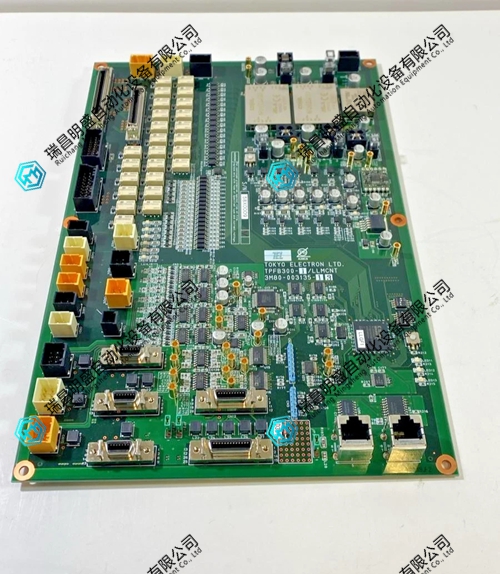

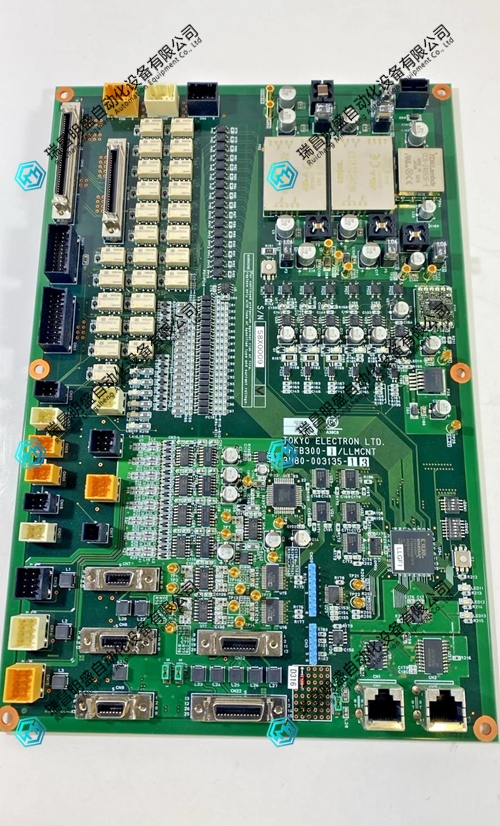

TEL 3M80-003135-13 印刷电路板，其产品特点可归纳如下：
属于Tokyo Electron（TEL）半导体制造设备专用的定制化印刷电路板。
型号以“3M80”开头，属于TEL常用的信号处理或控制类板卡。
在设备控制系统中承担信号中继、分配或转换功能。
作为主控板与传感器、执行器等下级模块之间的连接桥梁。
可实现不同模块间的电平转换与电气隔离保护。
负责将主控指令传输至阀门、加热器、气体流量控制器等执行元件。
回传工艺腔体内温度、气压、位置等传感器数据至主控单元。
分配来自电源模块的稳定电压至各子模块。
搭载逻辑元件、电平转换器或微控制器，辅助执行底层控制逻辑。
采用工业级多层PCB设计，具备良好的信号完整性和抗干扰性能。
板面可能带有三防涂层，适应半导体制造的洁净及温湿度环境。
通过背板连接器或扁平排线与其他模块实现物理连接。
应用于刻蚀、CVD、清洗及晶圆搬运系统等核心设备。
适配TEL Unity、Trias、Telius Pro等设备平台的控制子系统。
设计寿命长，支持模块化更换，降低维护周期。
综上所述，TEL 3M80-003135-13 属于TEL半导体设备中用于信号处理和模块间通信的定制化印刷电路板
The characteristics of TEL 3M80-003135-13 printed circuit board can be summarized as follows:
This is a customized printed circuit board specifically designed for Tokyo Electron (TEL) semiconductor manufacturing equipment.
The model starts with "3M80" and belongs to the signal processing or control board commonly used by TEL.
Undertake signal relay, distribution, or conversion functions in the device control system.
As a connecting bridge between the main control board and subordinate modules such as sensors and actuators.
It can achieve level conversion and electrical isolation protection between different modules.
Responsible for transmitting main control instructions to executing components such as valves, heaters, gas flow controllers, etc.
Return sensor data such as temperature, air pressure, and position inside the process chamber to the main control unit.
Allocate stable voltage from the power module to each submodule.
Equipped with logic components, level converters, or microcontrollers to assist in executing underlying control logic.
Adopting industrial grade multi-layer PCB design, it has good signal integrity and anti-interference performance.
The board surface may have a three proof coating to adapt to the clean and humid environment of semiconductor manufacturing.
Physical connection with other modules is achieved through backplane connectors or flat ribbon cables.
Applied to etching CVD、 Core equipment such as cleaning and wafer handling systems.
Control subsystem compatible with TEL Unity, Trias, Telius Pro and other device platforms.
Long design lifespan, supports modular replacement, and reduces maintenance cycles.
In summary, TEL 3M80-003135-13 is a customized printed circuit board used for signal processing and inter module communication in TEL semiconductor equipment
