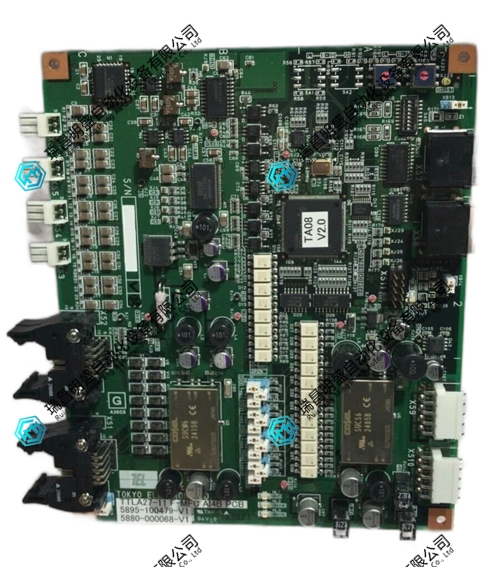

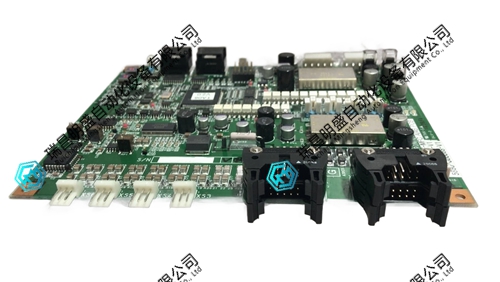

TEL 5880-000068-V1 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
TEL 5880-000068-V1 印刷电路板，其产品特点可归纳如下：
属于TEL（Tokyo Electron）半导体制造设备专用的印刷电路板。
在设备控制系统中承担信号采集、分配或转换的核心功能。
作为主控板与下级模块之间的信号中继节点。
实现不同模块之间的信号调节、电平转换与电气隔离保护。
负责将主控指令传输至加热器、阀门、气体流量控制器等执行元件。
回传工艺腔体内温度、气压、位置等传感器数据至主控单元。
分配来自电源模块的稳定电压至各子模块。
支持TTL电平信号或设备专用协议的传输与处理。
采用工业级多层PCB设计，具备良好的信号完整性和抗干扰性能。
搭载逻辑元件、电平转换器或微控制器，辅助执行底层控制逻辑。
接入限位开关、安全门传感器、急停开关等信号，参与设备联锁与安全保护。
典型应用领域包括刻蚀、CVD、清洗及晶圆搬运系统等。
适配TEL Unity、Trias、Telius Pro等设备平台的控制子系统。
通过背板连接器或扁平排线与其他模块实现物理连接。
设计寿命长，支持模块化更换，降低维护周期。
综上所述，TEL 5880-000068-V1 应属于TEL半导体设备中用于信号处理和模块间通信的定制化印刷电路板。
The characteristics of TEL 5880-000068-V1 printed circuit board can be summarized as follows:
This is a printed circuit board specifically designed for TEL (Tokyo Electron) semiconductor manufacturing equipment.
Undertake the core functions of signal acquisition, distribution, or conversion in the device control system.
As a signal relay node between the main control board and subordinate modules.
Realize signal regulation, level conversion, and electrical isolation protection between different modules.
Responsible for transmitting main control instructions to executing components such as heaters, valves, and gas flow controllers.
Return sensor data such as temperature, air pressure, and position inside the process chamber to the main control unit.
Allocate stable voltage from the power module to each submodule.
Support the transmission and processing of TTL level signals or device specific protocols.
Adopting industrial grade multi-layer PCB design, it has good signal integrity and anti-interference performance.
Equipped with logic components, level converters, or microcontrollers to assist in executing underlying control logic.
Connect limit switches, safety door sensors, emergency stop switches and other signals to participate in equipment interlocking and safety protection.
Typical application areas include etching CVD、 Cleaning and wafer handling systems, etc.
Control subsystem compatible with TEL Unity, Trias, Telius Pro and other device platforms.
Physical connection with other modules is achieved through backplane connectors or flat ribbon cables.
Long design lifespan, supports modular replacement, and reduces maintenance cycles.
In summary, TEL 5880-000068-V1 should belong to the customized printed circuit board used for signal processing and inter module communication in TEL semiconductor equipment.
