RENSHAW M-5225-0521-02 并行接口板 PDF资料
1.产 品 资 料 介 绍：
RENSHAW M-5225-0521-02 并行接口板 是雷尼绍公司为其激光编码器系统设计的一款专用接口组件，主要用于将激光尺的测量数据通过并行总线传输给控制系统。
属于雷尼绍（Renishaw）原厂部件。
用于激光尺系统的信号接口转换。
将编码器信号转换为并行格式输出。
可提供高分辨率的位置数据。
支持多轴位置和状态信息输出。
采用LVTTL兼容总线进行通信。
具备信号强度和错误标记等实时状态反馈。
可能兼容RPI30并行接口系列的功能特性。
用于精密运动控制或定位系统。
适用于半导体、计量、机床等高端应用。
模块化设计，便于系统集成。
采用工业级元器件，可靠性较高。
具体分辨率和速度参数取决于配对的激光尺系统。
具体接口定义以产品附带的技术手册为准。
属于雷尼绍精密测量生态系统的一部分。
总的来说，RENSHAW M-5225-0521-02 并行接口板是雷尼绍激光尺系统中的关键接口组件，用于实现高精度位置数据的并行传输
RENSHAW M-5225-0521-02 并行接口板 英文介绍
RENSHAW M-5225-0521-02 Parallel Interface Board is a specialized interface component designed by Renishaw for its laser encoder system. It is mainly used to transmit the measurement data of the laser ruler to the control system through a parallel bus.
Belongs to original Renishaw components.
Used for signal interface conversion in laser ruler systems.
Convert the encoder signal into parallel format for output.
Can provide high-resolution position data.
Support multi axis position and status information output.
Use LVTTL compatible bus for communication.
Real time status feedback with signal strength and error markers.
Possible compatibility with RPI30 parallel interface series features.
Used for precision motion control or positioning systems.
Suitable for high-end applications such as semiconductors, metrology, and machine tools.
Modular design facilitates system integration.
Using industrial grade components with high reliability.
The specific resolution and speed parameters depend on the paired laser ruler system.
The specific interface definition shall be subject to the technical manual attached to the product.
Belonging to the Renishaw precision measurement ecosystem.
Overall, the RENSHAW M-5225-0521-02 parallel interface board is a key interface component in the Renishaw laser ruler system, used to achieve parallel transmission of high-precision position data

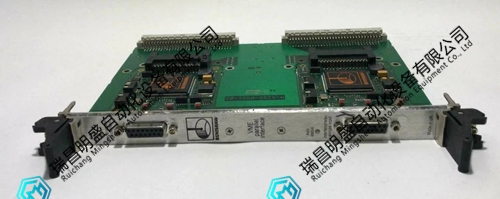

RENSHAW M-5225-0521-02 并行接口板 产品图片
