AMAT 0100-02355 接口模块 PDF资料
1.产 品 资 料 介 绍：
AMAT 0100-02355 SCR 接口模块
- 0100-02355 负责主控与 SCR 功率模块信号中转
- 光电隔离电路，隔绝高压电磁干扰，保护主控板
- 多路 DB 串口、金手指端子，适配功率单元接线
- 内置滤波电路，抑制杂波避免功率输出波动
- 板载状态指示灯，快速定位通讯、调压故障
- 多层精密功率走线，承载大电流信号传输
- 独立回路过流、短路保护，防止功率器件烧毁
- 工业级耐温元器件，支持 7×24 小时连续制程
- 标准机箱插卡版型，拆装替换无需改线
- 金属屏蔽屏蔽功率区域，降低腔体等离子干扰
- 板面三防涂层，防尘防潮适配无尘洁净车间
- 实时反馈调压采样信号，功率闭环控制稳定
- 适配 Centura、Endura 等 AMAT 薄膜沉积平台
- 出厂电性校准，上机直接匹配 SCR 功率单元
- 标准孔位连接器，同型号直接互换兼容结尾：AMAT 0100-02355 用于溅射、退火设备温控 / 功率调节，运行稳定、替换通用性强。
AMAT 0100-02355 接口模块 英文介绍
AMAT 0100-02355 SCR Interface Module
Introduction: AMAT 0100-02355 is a semiconductor machine specific SCR thyristor drive interface board, responsible for power regulation signal transmission, and is a spare part for maintenance of deposition/sputtering equipment.
0100-02355 is responsible for the signal relay between the main control and SCR power module
Optoelectronic isolation circuit, isolating high-voltage electromagnetic interference and protecting the main control board
Multi channel DB serial port, gold finger terminal, compatible with power unit wiring
Built in filtering circuit to suppress clutter and avoid power output fluctuations
Onboard status indicator light, quickly locate communication and voltage regulation faults
Multi layer precision power wiring, carrying high current signal transmission
Independent circuit overcurrent and short circuit protection to prevent power devices from burning out
Industrial grade temperature resistant components, supporting 7 × 24-hour continuous process
Standard chassis card insertion version, no need to change wiring for disassembly and replacement
Metal shielding shields the power area and reduces plasma interference in the cavity
Three proof coating on the board surface, dustproof and moisture-proof, suitable for dust-free clean workshops
Real time feedback voltage regulation sampling signal, stable power closed-loop control
Adapt to AMAT thin film deposition platforms such as Centura and Endura
Factory electrical calibration, directly matched with SCR power unit on the machine
Standard hole position connector, directly interchangeable and compatible with the same model
Conclusion: AMAT 0100-02355 is used for temperature control/power adjustment of sputtering and annealing equipment, with stable operation and strong versatility for replacement.

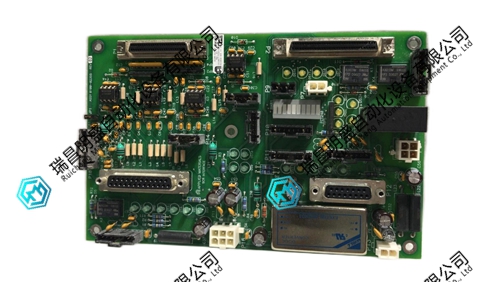

AMAT 0100-02355 接口模块 产品图片
