DENSAN DVE-511-PBF (9559A) -B 印刷电路板 PDF资料
1.产 品 资 料 介 绍：
DENSAN DVE-511-PBF (9559A)-B 印刷电路板产品特点
开头：DENSAN DVE-511-PBF 是一款8通道串行接口VME总线板卡，由Densan公司制造，核心特点如下：
中间特点：
支持8个通道的RS-232C或RS-422/485串行接口。
每个通道可通过跳线独立切换通信模式。
采用XR16L2550IM-F芯片作为UART控制器，与16550兼容。
支持异步通信，最高波特率可达921.6Kbps。
作为VME从设备板卡，符合A16/D08(0)规格。
内置VME中断功能，支持多路中断选择。
配备2个37针D-SUB连接器，每4个通道共用1个。
采用双高度单插槽设计，符合VME总线标准。
工作温度范围0至60℃，存储温度-20至80℃。
工作湿度范围10%至90%，无结露。
电源需求为+5V±5%，典型电流0.7A。
基地址可通过开关设置，占用256字节地址空间。
使用UL94V-0等级PCB材料制造。
符合RoHS环保指令。
曾用于Rudolph F30晶圆贴膜及检测系统等设备。
结尾：综上，DENSAN DVE-511-PBF 作为8通道串行接口VME板卡，具备灵活的接口切换能力和标准化的总线兼容性，适用于多路串行通信的工业控制与半导体设备场景。
DENSAN DVE-511-PBF (9559A) -B 印刷电路板 英文介绍
DENSAN DVE-511-PBF (9559A) - B Printed Circuit Board Product Features
Introduction: DENSAN DVE-511-PBF is an 8-channel serial interface VME bus board manufactured by Densan Corporation, with the following core features:
Intermediate characteristics:
Supports RS-232C or RS-422/485 serial interfaces with 8 channels.
Each channel can independently switch communication modes through jumper wires.
Using XR16L2550IM-F chip as UART controller, compatible with 16550.
Supports asynchronous communication, with a maximum baud rate of 921.6Kbps.
As a VME slave device board, it complies with A16/D08 (0) specifications.
Built in VME interrupt function, supporting multiple interrupt selections.
Equipped with 2 37 pin D-SUB connectors, sharing 1 for every 4 channels.
Adopting a dual height single slot design, it complies with the VME bus standard.
The working temperature range is 0 to 60 ℃, and the storage temperature is -20 to 80 ℃.
The working humidity range is 10% to 90%, with no condensation.
The power requirement is+5V ± 5%, with a typical current of 0.7A.
The base address can be set through a switch, occupying 256 bytes of address space.
Made with UL94V-0 grade PCB material.
Compliant with the RoHS environmental directive.
Used in equipment such as Rudolph F30 wafer film coating and inspection system.
Conclusion: In summary, DENSAN DVE-511-PBF, as an 8-channel serial interface VME board, has flexible interface switching capabilities and standardized bus compatibility, making it suitable for industrial control and semiconductor equipment scenarios with multi-channel serial communication.

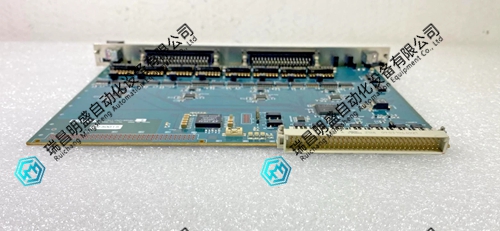

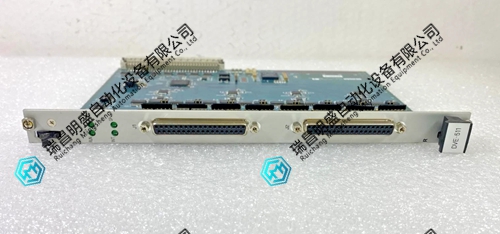

DENSAN DVE-511-PBF (9559A) -B 印刷电路板 产品图片
