PARKER  05-06192-101 电路板 PDF资料

1.产 品 资 料 介 绍：

PARKER 05-06192-101 电路板产品特点

开头：PARKER 05-06192-101 是一款PC/104规格的扩展模块，主要作为Parker PS系列PowerStation的扩展组件使用，其核心特点如下：

中间特点：

1. 采用PC/104紧凑型模块化设计，适合嵌入式系统集成。

2. 作为Parker PS系列PowerStation的专用扩展模块。

3. 提供3个PC/104扩展插槽，支持功能扩展。

4. 配备1个RS232/422/485串行接口，兼容多种串口协议。

5. 额外提供2个RS232串行接口，满足多设备通信需求。

6. 集成10/100 Base-T以太网接口，带RJ45连接器。

7. 配备1个25针并行I/O接口，支持双向SSP/SPP/ECP模式。

8. 可作为工控机或嵌入式系统的I/O扩展方案。

9. 板卡本身不包含处理器、内存或电池，需配合主系统使用。

10. 适用于工业自动化与控制领域的设备扩展。

11. 部分版本提供PS/2键盘和鼠标接口（视具体版本而定）。

12. 符合PC/104标准，兼容性好，易于替换。

13. 适用于Parker/CTC品牌的相关工业计算平台。

14. 可作为备件用于维修或升级老旧系统。

15. 目前市场上有作为备件维修件销售的现货供应。

结尾：综上，PARKER 05-06192-101 作为一款PC/104扩展模块，具备多串口、以太网和并行接口等丰富I/O能力，适合用于Parker工控系统的功能扩展与备件替换。

PARKER  05-06192-101 电路板 英文介绍

PARKER 05-06192-101 Circuit Board Product Features

Introduction: PARKER 05-06192-101 is a PC/104 specification expansion module mainly used as an expansion component for Parker PS series PowerStation. Its core features are as follows:

Intermediate characteristics:

Adopting PC/104 compact modular design, suitable for embedded system integration.

As a dedicated expansion module for Parker PS series PowerStation.

Provide 3 PC/104 expansion slots, supporting functional expansion.

Equipped with one RS232/422/485 serial interface, compatible with multiple serial protocols.

Provide 2 additional RS232 serial interfaces to meet the communication needs of multiple devices.

Integrated 10/100 Base-T Ethernet interface with RJ45 connector.

Equipped with one 25 pin parallel I/O interface, supporting bidirectional SSP/SPP/ECP modes.

Can be used as an I/O expansion solution for industrial computers or embedded systems.

The board itself does not include a processor, memory, or battery and needs to be used in conjunction with the main system.

Suitable for equipment expansion in the field of industrial automation and control.

Some versions offer PS/2 keyboard and mouse interfaces (depending on the specific version).

Compliant with PC/104 standard, with good compatibility and easy replacement.

Suitable for Parker/CTC brand related industrial computing platforms.

Can be used as spare parts for repairing or upgrading old systems.

At present, there is a spot supply of spare parts and repair parts available for sale in the market.

Conclusion: In summary, PARKER 05-06192-101, as a PC/104 expansion module, has rich I/O capabilities such as multiple serial ports, Ethernet, and parallel interfaces, making it suitable for functional expansion and spare parts replacement in Parker industrial control systems.

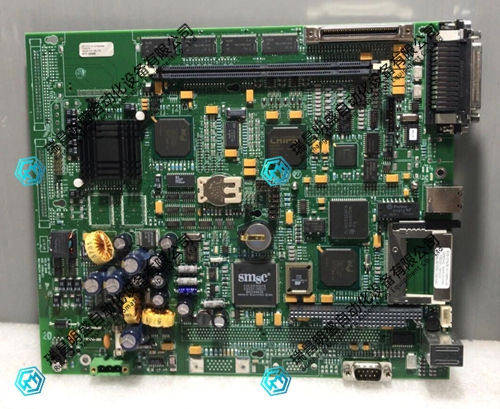

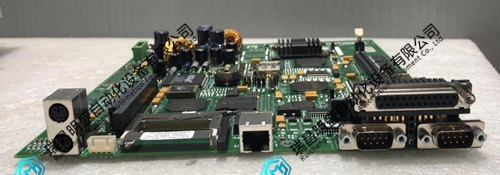

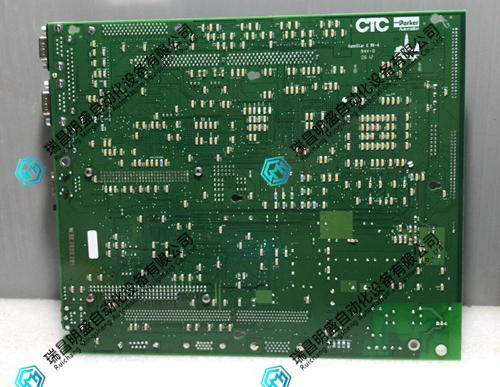

PARKER  05-06192-101 电路板 产品图片
