Mega_F 00120-2000-000 -04 运动控制器 PDF资料
1.产 品 资 料 介 绍：
Mega-F 00120-2000-000-04 运动控制器 产品特点
Mega-F 00120-2000-000-04 运动控制器出自以色列Mega-Fabs公司，采用浮点DSP处理器核心，支持多轴协同控制与图形化算法开发，专为半导体制造及精密检测等高端场景设计。以下为该型号的十五项主要特点：
Mega-Fabs原厂出品，以色列技术背景。
采用浮点DSP处理器，运算能力强。
支持最多七轴运动与I/O控制。
总采样率40kHz，实时性出色。
支持级联速度-位置回路控制。
内置速度与加速度前馈功能。
支持S曲线加减速规划。
配备PI抗饱和算法与双二阶滤波器。
支持增益调度算法，适应不同工况。
支持无刷电机矢量控制与无霍尔启动。
支持龙门控制结构，适配精密平台。
支持WizAlg图形化编程，操作简便。
配备以太网、USB、RS232等通讯接口。
内置实时示波器功能，便于调试。
位置精度支持32位及64位扩展。
总而言之，这款运动控制器计算能力强、实时性高、编程灵活，适用于半导体设备与精密运动平台等高端场景
MEGA-F 00000-2013-000 -07 线性伺服驱动器 英文介绍
Mega-F 00120-2000-000-04 Motion Controller Product Features
The Mega-F 00120-2000-000-04 motion controller is produced by Mega Fibs, an Israeli company. It uses a floating-point DSP processor core and supports multi axis collaborative control and graphical algorithm development. It is designed specifically for high-end scenarios such as semiconductor manufacturing and precision testing. The following are the fifteen main features of this model:
Mega Fibs is an original product with an Israeli technical background.
Adopting a floating-point DSP processor with strong computing power.
Supports up to seven axis motion and I/O control.
The total sampling rate is 40kHz, with excellent real-time performance.
Support cascading speed position loop control.
Built in speed and acceleration feedforward function.
Support S-curve acceleration and deceleration planning.
Equipped with PI anti saturation algorithm and double second-order filter.
Support gain scheduling algorithm to adapt to different working conditions.
Supports brushless motor vector control and Hall free starting.
Support gantry control structure and adapt to precision platforms.
Support WizAlg graphical programming, easy to operate.
Equipped with communication interfaces such as Ethernet, USB, RS232, etc.
Built in real-time oscilloscope function for easy debugging.
Position accuracy supports 32-bit and 64 bit extensions.
In summary, this motion controller has strong computing power, high real-time performance, and flexible programming, making it suitable for high-end scenarios such as semiconductor equipment and precision motion platforms

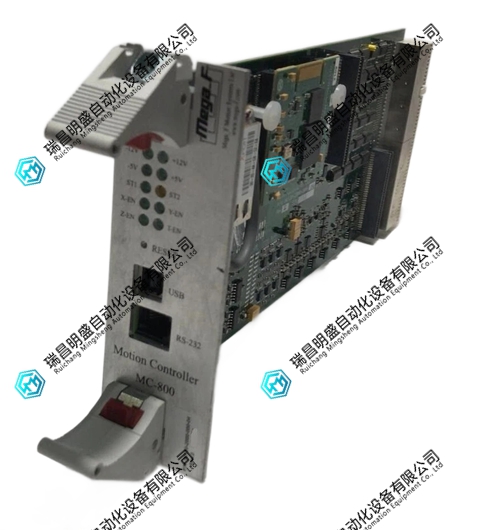

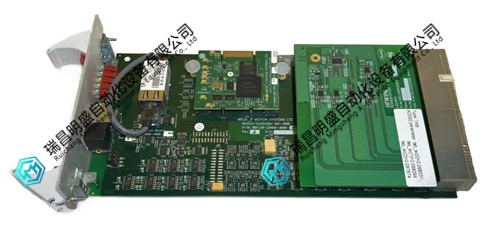

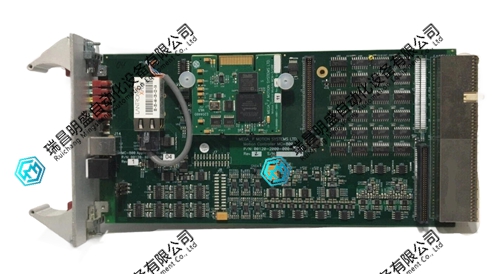

Mega_F 00120-2000-000 -04 运动控制器 产品图片
