IC697PWR710电源供应 PDF资料
1.产 品 资 料 介 绍：

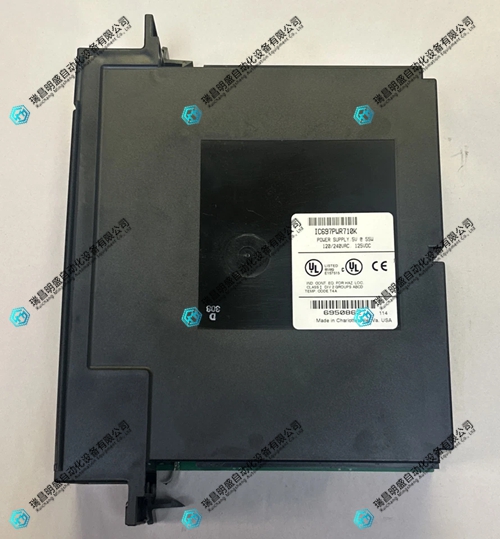

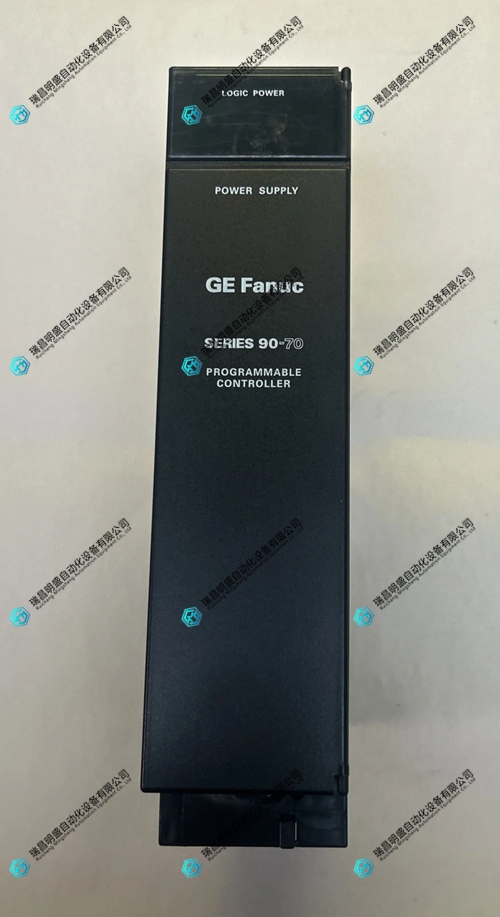

IC697PWR710 电源供应模块
IC697PWR710 是 GE Fanuc 90‑70 系列 PLC 系统的标准电源模块，负责为整个机架提供稳定的 DC 电源，支持 CPU、I/O 模块及扩展模块的正常运行。
一、主要功能
提供稳定电源
输出 +5 V DC，为 90‑70 系统背板及模块供电，确保 PLC 稳定运行。安装位置
必须安装在机架最左槽位，与 CPU 和 I/O 模块组成完整系统。保护功能
内置过电压、过电流保护及电子限流，增强系统安全性。掉电短时维持
在交流输入瞬间中断时可维持短时间输出，减少瞬时掉电对系统的影响。
二、技术特点
输入电压范围
AC：90–264 VAC，47–63 Hz
DC：100–150 VDC
输出参数
名义 +5.1 V DC，允许范围约 4.9–5.25 V
最大输出电流约 11 A
最大输出功率约 56 W
工业级设计
稳定性强，适应复杂工业环境，抗干扰能力好。模块化结构
插装式设计，方便现场安装和维护。
三、应用场景
工厂自动化及过程控制系统
制造现场 PLC 控制系统
需要宽输入电压支持及短时掉电保护的工业环境
总结
IC697PWR710 是 90‑70 PLC 系统的核心电源模块，为系统提供稳定 +5 V DC 供电，并具备基本保护功能。它是整个 PLC 系统稳定可靠运行的基础，适用于各种工业自动化场景。
IC697PWR710电源供应 英文介绍
IC697PWR710 power supply module
IC697PWR710 is the standard power module for GE Fanuc 90-70 series PLC systems, responsible for providing stable DC power to the entire rack, supporting the normal operation of CPU, I/O modules, and expansion modules.
1、 Main functions
Provide stable power supply
Output+5V DC to power the 90-70 system backplane and modules, ensuring stable operation of the PLC.
Installation location
It must be installed in the leftmost slot of the rack, forming a complete system with the CPU and I/O modules.
protection function
Built in overvoltage and overcurrent protection, as well as electronic current limiting, enhance system safety.
Short term maintenance during power outage
It can maintain short-term output when communication input is interrupted instantly, reducing the impact of instantaneous power failure on the system.
2、 Technical features
Input voltage range
AC：90–264 VAC，47–63 Hz
DC：100–150 VDC
output parameters
Nominal+5.1 V DC, allowable range approximately 4.9-5.25 V
The maximum output current is about 11 A
The maximum output power is about 56 W
Industrial-grade design
Strong stability, adaptable to complex industrial environments, and good anti-interference ability.
Modular structure
Plug in design, convenient for on-site installation and maintenance.
3、 Application scenarios
Factory Automation and Process Control System
Manufacturing site PLC control system
Industrial environments that require wide input voltage support and short-term power outage protection
summary
IC697PWR710 is the core power module of the 90-70 PLC system, providing stable+5V DC power supply and basic protection functions for the system. It is the foundation for the stable and reliable operation of the entire PLC system, suitable for various industrial automation scenarios.
