IC697MEM719 扩展存储模块 PDF资料
1.产 品 资 料 介 绍：

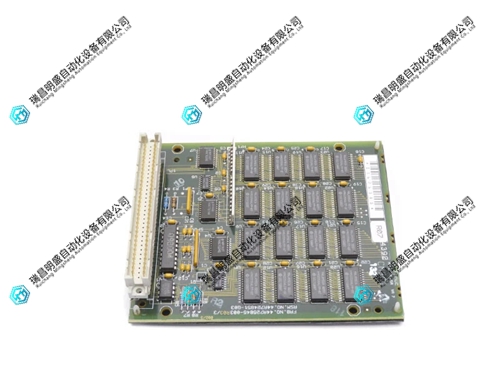

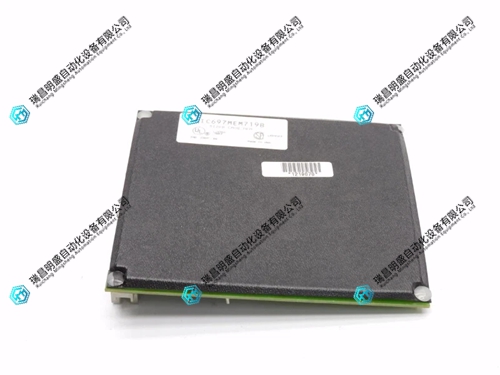

IC697MEM719 扩展存储模块
IC697MEM719 是 GE Fanuc 90-70 系列 PLC 的一种扩展存储模块，用于为系统提供更大的程序和数据存储空间。它与 MEM713/MEM715/MEM717 类似，都是为 PLC 系统的内存扩展而设计，但在容量与用途上有所不同。
主要用途
扩展程序内存容量
当 PLC 的内置存储不能满足较大规模程序时，MEM719 提供额外的空间用于存放更复杂的控制逻辑。保存数据和系统信息
除了程序代码，它也可用于保留变量、数据块、系统设定等信息。断电保持功能
内部采用非易失性存储（如 CMOS 配合保持电源），在断电后仍能保证数据保存。
技术特点
兼容性好
与 90-70 系列 CPU 模块无缝连接，可以作为标准扩展单元使用。扩展容量大
MEM719 相比一些早期的扩展存储模块具有更大的可用存储容量，适合更复杂控制应用。稳定与抗干扰
工业级设计，具备良好的抗噪声、抗振动与高稳定性。模块化结构
可插拔式模块安装，便于现场配置与维护。支持诊断功能
可配合系统诊断机制，提供内存扩展状态的监测与报警。
适用场景
大型自动化系统控制程序
程序逻辑复杂、变量较多的工业现场
需要扩展存储以支持历史数据保存或更多数据结构的应用
需要提高 PLC 内存容量的系统升级项目
总结
IC697MEM719 是 GE Fanuc 90-70 PLC 系统中用于扩展存储容量的重要模块。通过增加存储空间，它能支持更大规模的程序和更多数据，使 PLC 控制系统具备更强的处理能力和更高的灵活性。
IC697MEM719 扩展存储模块 英文介绍
IC697MEM719 Extended Storage Module
IC697MEM719 is an extended storage module of GE Fanuc 90-70 series PLC, used to provide larger program and data storage space for the system. It is similar to MEM713/MEM715/MEM717, both designed for memory expansion in PLC systems, but with differences in capacity and usage.
main purpose
Expand program memory capacity
When the built-in storage of PLC cannot meet the requirements of large-scale programs, MEM719 provides additional space for storing more complex control logic.
Save data and system information
In addition to program code, it can also be used to retain information such as variables, data blocks, system settings, etc.
Power off hold function
Internally, non-volatile storage (such as CMOS combined with power supply) is used to ensure data preservation even after power failure.
Technical Features
Good compatibility
Seamless connection with 90-70 series CPU modules, it can be used as a standard expansion unit.
Large expansion capacity
Compared to some early expansion storage modules, MEM719 has a larger available storage capacity and is suitable for more complex control applications.
Stability and anti-interference
Industrial grade design with excellent noise resistance, vibration resistance, and high stability.
Modular structure
Plug in module installation, convenient for on-site configuration and maintenance.
Support diagnostic function
Can cooperate with the system diagnostic mechanism to provide monitoring and alarm of memory expansion status.
Applicable scenarios
Large scale automation system control program
Industrial sites with complex program logic and numerous variables
Applications that require extended storage to support the preservation of historical data or more data structures
System upgrade project requiring an increase in PLC memory capacity
summary
IC697MEM719 is an important module used to expand storage capacity in the GE Fanuc 90-70 PLC system. By increasing storage space, it can support larger scale programs and more data, enabling PLC control systems to have stronger processing capabilities and higher flexibility.
