IC697ALG440扩展器模块 PDF资料
1.产 品 资 料 介 绍：

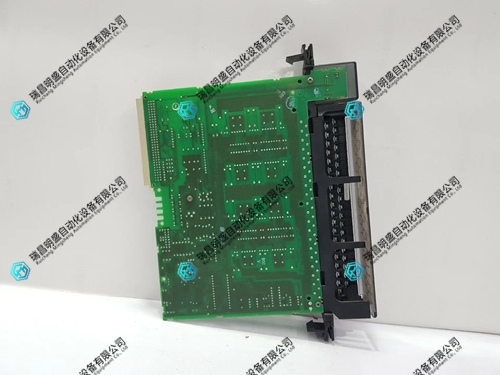

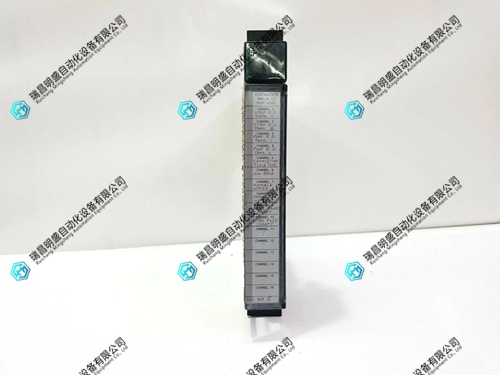

IC697ALG440 扩展器模块是 GE Fanuc Series 90-70 PLC 系统中的模拟量输入扩展单元，主要用于扩展系统模拟信号采集能力，适用于需要大量电流信号输入的工业自动化场合。
产品特点：
作为模拟输入扩展模块使用，需与基础模拟转换模块配合工作。
提供 16 路模拟电流输入通道。
支持标准 4–20 mA 电流信号采集。
具备高分辨率数据转换能力，提高测量精度。
通道可通过软件进行参数配置。
输入信号经转换后通过背板总线传输至 CPU。
具备输入过压保护功能，提高系统安全性。
适用于过程控制、能源监测及制造自动化系统。
模块结构紧凑，节省机架空间。
采用工业级设计，运行稳定可靠。
抗电磁干扰能力强，适合复杂工业环境。
支持系统容量扩展，满足大规模模拟量采集需求。
安装方便，可直接插装于标准机架。
数据刷新速度快，满足实时控制要求。
维护简单，长期运行稳定性高。
总体来看，IC697ALG440 扩展器模块能够有效提升 PLC 系统的模拟量输入容量，是构建大规模数据采集系统的重要扩展组件。
IC697ALG440扩展器模块 英文介绍
The IC697ALG440 extender module is an analog input expansion unit in the GE Fanuc Series 90-70 PLC system. It is mainly used to expand the system's analog signal acquisition capability and is suitable for industrial automation applications that require a large amount of current signal input.
Product Features:
As an analog input extension module, it needs to work in conjunction with the basic analog conversion module.
Provide 16 analog current input channels.
Support standard 4-20 mA current signal acquisition.
Capable of high-resolution data conversion to improve measurement accuracy.
Channels can be configured with parameters through software.
The input signal is converted and transmitted to the CPU through the backplane bus.
Equipped with input overvoltage protection function to improve system security.
Suitable for process control, energy monitoring, and manufacturing automation systems.
The module structure is compact, saving rack space.
Adopting industrial grade design, stable and reliable operation.
Strong anti-interference ability, suitable for complex industrial environments.
Support system capacity expansion to meet the needs of large-scale analog data acquisition.
Easy to install, can be directly plugged into a standard rack.
Fast data refresh speed meets real-time control requirements.
Easy maintenance and high long-term stability.
Overall, the IC697ALG440 extender module can effectively enhance the analog input capacity of PLC systems and is an important expansion component for building large-scale data acquisition systems.
