IC697ALG320模拟输出模块 PDF资料
1.产 品 资 料 介 绍：

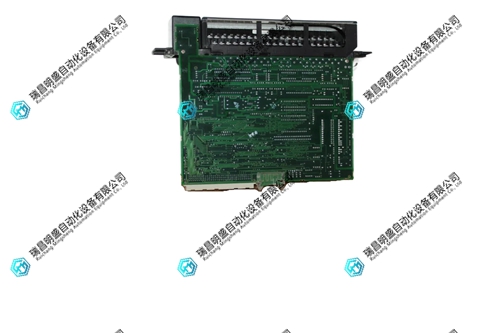

IC697ALG320 是 GE Fanuc / GE Intelligent Platforms VersaMax / Series90-30 控制系统中的一款 模拟量输出模块，用于将数字控制系统的指令转换为标准模拟电流或电压信号，以驱动现场执行器、控制阀或记录仪等设备。
产品特点：
提供 隔离型模拟输出，提高抗干扰性能。
支持输出标准工业模拟信号（如 0–20 mA、4–20 mA、0–10 V 等）。
多通道设计（通常为 4 路输出），可提供多路独立模拟量输出。
通道间具备电气隔离，减少互相干扰。
输出精度高，线性度好，满足控制精度要求。
响应速度快，适合闭环控制应用。
兼容 GE 自动化控制平台，可直接插装于底板。
状态指示清晰，方便故障诊断与维护。
支持热插拔（在允许的系统条件下），便于现场维护。
工作稳定可靠，适用于连续运行工业环境。
模块紧凑，占用机架空间小。
工业级设计，抗振动、抗冲击性能好。
低功耗设计，有助于系统节能。
与控制器 CPU 高效通信，数据更新及时。
可驱动多种现场设备，如调节阀、电机驱动器等。
总体而言，IC697ALG320 模拟输出模块在工业控制系统中主要承担数字控制到模拟执行信号的转换任务，其稳定性、隔离性能和输出精度使其适合各种自动化控制场合。
IC697ALG320模拟输出模块 英文介绍
IC697ALG320 is an analog output module in the GE Fanuc/GE Intelligent Platforms VersaMax/Series90-30 control system, used to convert digital control system instructions into standard analog current or voltage signals to drive field actuators, control valves, recorders, and other devices.
Product Features:
Provide isolated analog output to improve anti-interference performance.
Supports outputting standard industrial analog signals (such as 0-20 mA, 4-20 mA, 0-10 V, etc.).
Multi channel design (usually with 4 outputs) can provide multiple independent analog outputs.
There is electrical isolation between channels to reduce mutual interference.
High output accuracy, good linearity, meeting control accuracy requirements.
Fast response speed, suitable for closed-loop control applications.
Compatible with GE automation control platform, can be directly plugged into the base plate.
Clear status indication facilitates fault diagnosis and maintenance.
Support hot plugging (under allowed system conditions) for easy on-site maintenance.
Stable and reliable work, suitable for continuous operation in industrial environments.
The module is compact and occupies little rack space.
Industrial grade design, with good resistance to vibration and impact.
Low power design helps the system save energy.
Efficient communication with the controller CPU and timely data updates.
It can drive various on-site devices, such as regulating valves, motor drivers, etc.
Overall, the IC697ALG320 analog output module is mainly responsible for the conversion of digital control to analog execution signals in industrial control systems. Its stability, isolation performance, and output accuracy make it suitable for various automation control scenarios.
