P0916JQ隔离模块 PDF资料
1.产 品 资 料 介 绍：

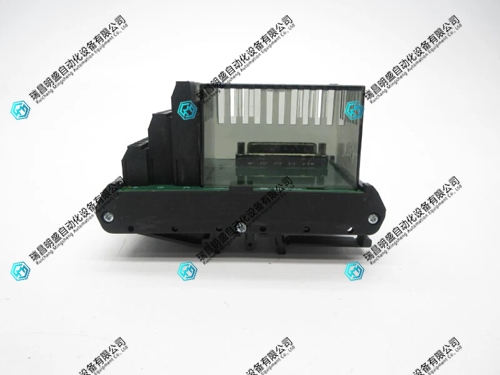

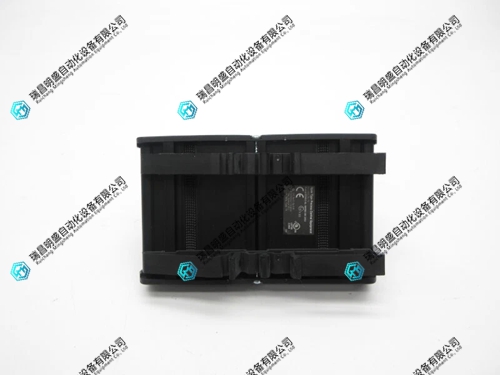

P0916JQ 隔离模块是 FOXBORO I/A Series 分布式控制系统中用于提供电气隔离的现场接口模块，主要用于增强信号通道的抗干扰能力和系统稳定性，特别适合复杂工业现场的隔离需求。
产品特点
1 提供通道之间、通道与系统之间的电气隔离，减少地环路干扰
2 提升模拟量与数字量信号的抗噪能力，保证信号传输稳定
3 适用于多种现场信号类型的隔离处理，兼容性良好
4 可用于输入信号隔离、输出信号隔离或双向隔离场合
5 模块通过系统背板与控制器通信时仍保持隔离性能
6 结构设计紧凑，便于在控制机架中安装和布局
7 插装式设计便于现场更换和维护操作
8 采用工业级隔离元件和工艺，适合现场长期连续运行
9 具备运行状态监测功能，有助于排查隔离通道故障
10 隔离性能稳定可靠，有效提高整个控制系统的抗干扰能力
总体来看，P0916JQ 隔离模块在增强信号完整性、提高系统抗干扰性和现场可靠性方面表现良好，是 FOXBORO 控制系统中重要的隔离增强单元。
P0916JQ隔离模块 英文介绍
P0916JQ isolation module is a field interface module used in FOXBORO I/A Series distributed control systems to provide electrical isolation. It is mainly used to enhance the anti-interference ability and system stability of signal channels, and is particularly suitable for the isolation needs of complex industrial sites.
Product Features
1. Provide electrical isolation between channels and between channels and systems to reduce ground loop interference
2. Improve the noise resistance of analog and digital signals to ensure stable signal transmission
3. Suitable for isolation processing of various types of on-site signals, with good compatibility
4 can be used for input signal isolation, output signal isolation, or bidirectional isolation scenarios
5 modules maintain isolation performance when communicating with the controller through the system backplane
6. Compact structural design, easy to install and layout in the control rack
7 plug-in design for easy on-site replacement and maintenance operations
8 adopts industrial grade isolation components and processes, suitable for long-term continuous operation on site
9 has operation status monitoring function, which helps to troubleshoot isolation channel faults
10. Stable and reliable isolation performance, effectively improving the anti-interference ability of the entire control system
Overall, the P0916JQ isolation module performs well in enhancing signal integrity, improving system anti-interference and on-site reliability, and is an important isolation enhancement unit in the FOXBORO control system.
