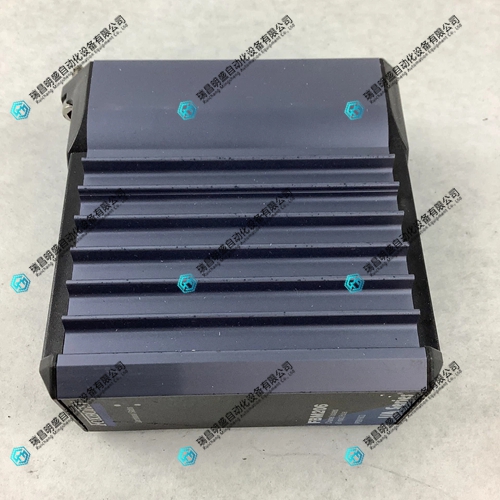

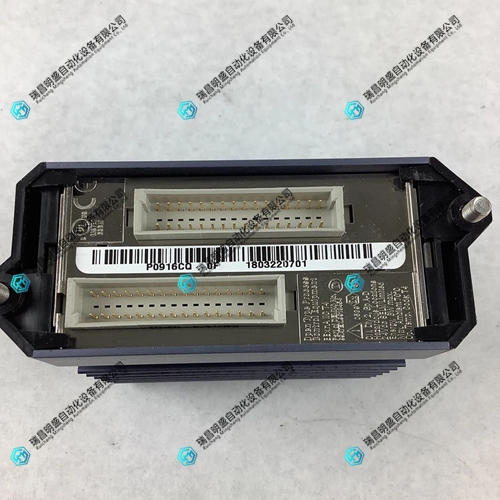

P0916CQ FBM206脉冲输入模块 PDF资料
1.产 品 资 料 介 绍：
P0916CQ FBM206 脉冲输入模块是 FOXBORO I/A Series 分布式控制系统中的现场脉冲信号采集模块，主要用于对来自现场脉冲传感器的高速脉冲信号进行可靠采集与传送，实现精确计数和运动/频率反馈控制。
产品特点
1 支持多路脉冲输入通道，可同时采集多个现场脉冲信号
2 对输入脉冲信号具有可靠的捕获能力，适应高速信号变化
3 通道之间采用隔离设计，有效降低干扰和地环路影响
4 输入接口兼容常见脉冲传感器和开关设备，现场适配性强
5 模块通过系统背板与控制器通信，数据传输稳定可靠
6 具备高速计数功能，可实现精确的脉冲计量和频率测量
7 支持运行状态监测和故障反馈，有助于系统维护与诊断
8 插装式结构设计，便于安装、替换和现场维护
9 采用工业级设计标准，适合长期连续运行的工业现场
10 抗干扰性能好，适应现场复杂电磁环境
总体来看，P0916CQ FBM206 脉冲输入模块在高速脉冲采集、稳定性和现场适应能力方面表现良好，是 FOXBORO 控制系统中常用的脉冲输入模块。
P0916CQ FBM206脉冲输入模块 英文介绍
P0916CQ FBM206 pulse input module is a field pulse signal acquisition module in FOXBORO I/A Series distributed control system, mainly used for reliable acquisition and transmission of high-speed pulse signals from field pulse sensors, achieving accurate counting and motion/frequency feedback control.
Product Features
1. Supports multiple pulse input channels and can simultaneously collect multiple on-site pulse signals
2 pairs of input pulse signals have reliable capture capability and can adapt to high-speed signal changes
Isolation design is adopted between the three channels to effectively reduce interference and the impact of ground loops
4 input interfaces compatible with common pulse sensors and switch devices, with strong on-site adaptability
5 modules communicate with the controller through the system backplane, ensuring stable and reliable data transmission
6 has high-speed counting function, which can achieve accurate pulse measurement and frequency measurement
7 supports running status monitoring and fault feedback, which helps with system maintenance and diagnosis
8 plug-in structure design, easy to install, replace and maintain on site
Adopting industrial grade design standards, suitable for long-term continuous operation in industrial sites
10. Good anti-interference performance, suitable for complex electromagnetic environments on site
Overall, the P0916CQ FBM206 pulse input module performs well in high-speed pulse acquisition, stability, and on-site adaptability, making it a commonly used pulse input module in FOXBORO control systems.
