MATROX Y7469-03 采集卡 PDF资料
1.产 品 资 料 介 绍：
MATROX Y7469-03 采集卡
MATROX Y7469-03 采集卡的核心特点如下：
该型号未查到直接规格，近似型号Y7469-02为Camera Link采集卡。
属于Matrox Radient系列，面向工业机器视觉应用。
支持Camera Link Base配置，连接标准工业相机。
通过PCIe总线与主机通信，实现高速图像传输。
支持外部触发与编码器输入，适用于运动控制场景。
板载缓存区，防止高速采集时数据丢失。
支持多卡同步，适用于多相机检测系统。
提供I/O接口，连接光源、编码器等外部设备。
配备专用驱动和SDK，便于系统集成开发。
符合工业级EMC标准，适应复杂电磁环境。
适用于半导体检测、电子制造、自动化测量等领域。
采用标准PCIe板卡尺寸，适配工控机箱。
需配合Matrox Imaging Library（MIL）软件使用。
MATROX Y7469-03 可能为定制或衍生型号，端口配置或有差异。
建议查阅Matrox Radient系列手册确认详细参数。
综上，MATROX Y7469-03 应是一款Camera Link工业图像采集卡，适用于高速机器视觉系统。
MATROX Y7469-03 采集卡 英文介绍
MATROX Y7469-03 acquisition card
The core features of the MATROX Y7469-03 acquisition card are as follows:
No direct specifications were found for this model, and the approximate model Y7469-02 is a Camera Link acquisition card.
Belonging to the Matrox Radiant series, aimed at industrial machine vision applications.
Support Camera Link Base configuration to connect standard industrial cameras.
Communicate with the host through PCIe bus to achieve high-speed image transmission.
Supports external triggering and encoder input, suitable for motion control scenarios.
Onboard cache area to prevent data loss during high-speed data collection.
Supports multi card synchronization and is suitable for multi camera detection systems.
Provide I/O interfaces to connect external devices such as light sources and encoders.
Equipped with dedicated drivers and SDKs for easy system integration and development.
Compliant with industrial grade EMC standards and adaptable to complex electromagnetic environments.
Suitable for fields such as semiconductor testing, electronic manufacturing, and automated measurement.
Adopting standard PCIe card size, compatible with industrial control chassis.
It needs to be used in conjunction with Matrox Imaging Library (MIL) software.
MATROX Y7469-03 may be a customized or derivative model with different port configurations.
Suggest consulting the Matrox Radiant series manual to confirm detailed parameters.
Overall, MATROX Y7469-03 should be a Camera Link industrial image acquisition card suitable for high-speed machine vision systems.

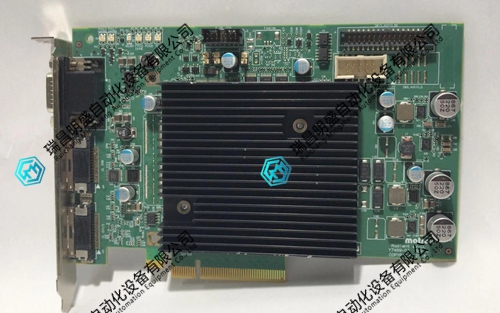

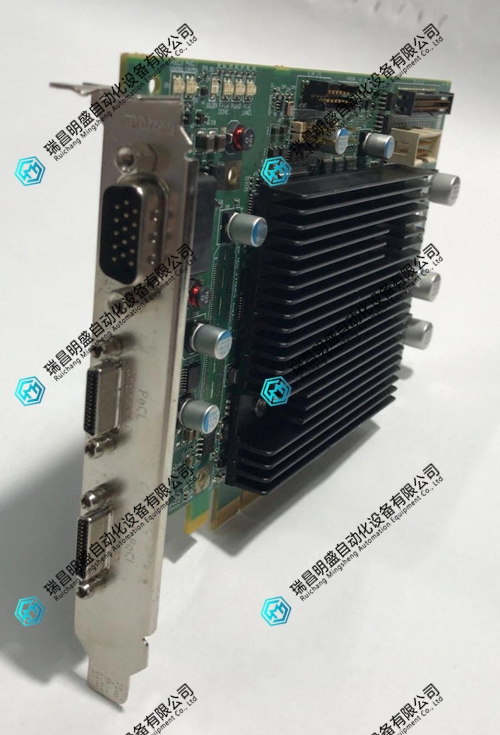

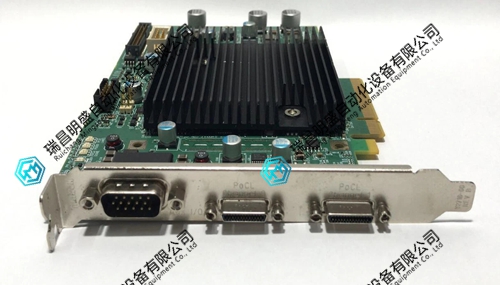

MATROX Y7469-03 采集卡 产品图片
