TEL 2L81-050174-V1 印刷电路板 PDF资料
1.产 品 资 料 介 绍：

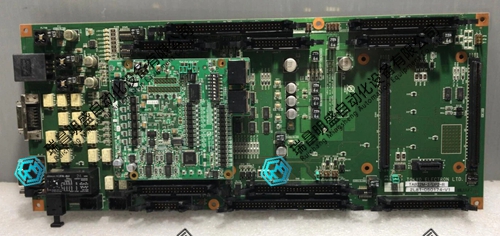

TEL 2L81-050174-V1 印刷电路板
TEL 2L81-050174-V1 印刷电路板的核心特点如下：
专为TEL（东京电子）刻蚀或沉积设备设计，非通用板卡。
负责设备内部信号传输与电平转换。
集成了低压电源的滤波与分配电路。
采用专用连接器布局，适配TEL设备背板接口。
包含CPLD或FPGA实现时序逻辑控制。
多层PCB设计，具备良好的抗干扰能力。
元件经老化筛选，适应真空及温度变化环境。
设有测试点与指示灯，便于状态监测。
板载保险丝或保护器件，防止异常电流损坏。
搭载小容量存储器，存储配置信息与版本号。
基材符合UL 94 V-0阻燃标准。
焊接工艺可靠，满足工业级温度循环要求。
采用TEL设备专用导轨或插槽安装。
板面印有物料编号与版本号，便于追溯。
TEL 2L81-050174-V1 更换后需配合上位机进行校准。
综上，TEL 2L81-050174-V1 是TEL半导体设备的专用板卡，维修或更换建议由具备资质的工程师操作。
TEL 2L81-050174-V1 Printed Circuit Board
The core features of TEL 2L81-050174-V1 printed circuit board are as follows:
Specially designed for TEL (Tokyo Electronics) etching or deposition equipment, non universal board.
Responsible for internal signal transmission and level conversion of equipment.
Integrated filtering and distribution circuit for low-voltage power supply.
Adopting a dedicated connector layout to adapt to TEL device backplane interfaces.
Includes CPLD or FPGA for implementing timing logic control.
Multi layer PCB design with excellent anti-interference capability.
The components have been aged and screened to adapt to vacuum and temperature changing environments.
There are testing points and indicator lights for easy status monitoring.
Onboard fuses or protective devices to prevent damage from abnormal currents.
Equipped with small capacity storage, storing configuration information and version numbers.
The substrate meets the UL 94 V-0 flame retardant standard.
The welding process is reliable and meets the requirements of industrial grade temperature cycling.
Install using TEL equipment specific rails or slots.
The board is printed with the material number and version number for easy traceability.
TEL 2L81-050174-V1 needs to be calibrated in conjunction with the upper computer after replacement.
In summary, TEL 2L81-050174-V1 is a dedicated board for TEL semiconductor equipment, and it is recommended that maintenance or replacement be carried out by qualified engineers.
