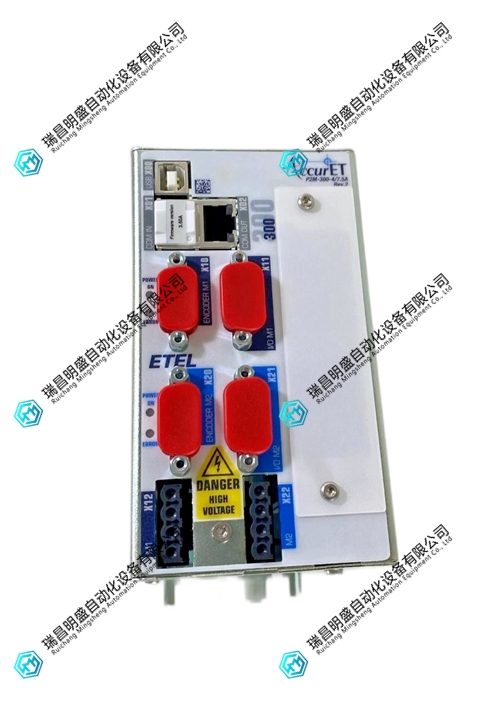

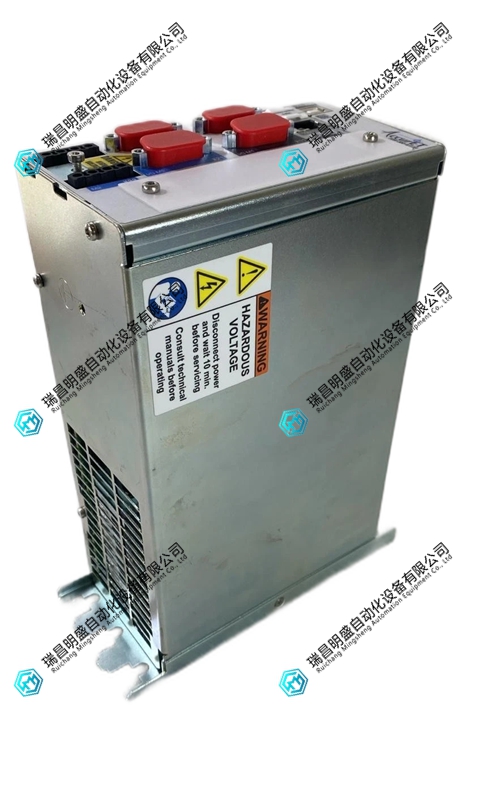

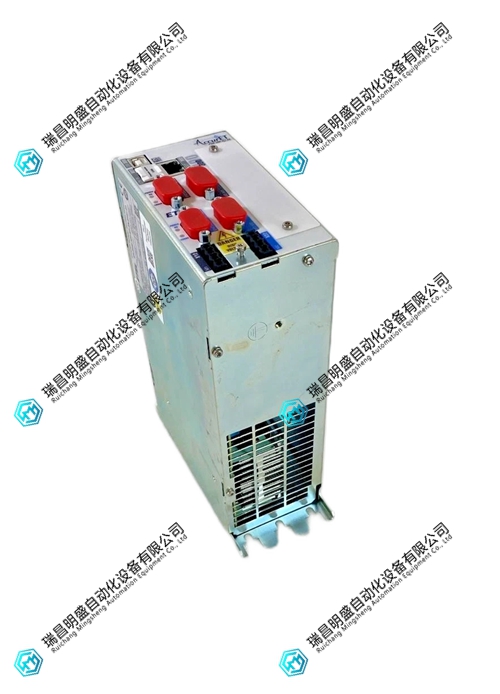

ETEL EA-P2M-300-4 位置控制器 PDF资料
1.产 品 资 料 介 绍：
- 双轴同步控制，单轴持续输出 7.5A 电流，过载性能充足
- 支持 EtherCAT 高速总线，实时通讯周期短，响应速度快
- 搭载双编码器反馈算法，定位精度高，重复误差极小
- 内置齿槽与摩擦力补偿程序，抑制运动抖动、缩短整定时间
- 48-340VDC 宽电压输入，适配各类产线直流供电系统
- 10/20kHz 可调 PWM 载波，适配直线、音圈多种精密电机
- 集成多重硬件保护，含过压、过流、短路与急停安全逻辑
- 自带轨迹滤波功能，优化运动曲线，减少平台共振
- 模块化紧凑机身，导轨卡扣安装，布线简洁节省空间
- 配套专业调试软件，一键机械辨识，现场调试效率高
- 多路数字 / 模拟 IO 接口，可对接探针、限位各类外设
- 支持龙门同步控制，适配晶圆检测、光刻高精度工位
- 金属屏蔽壳体，隔绝车间电磁干扰，运行稳定不飘位
- 兼容 EnDat、TTL 多种编码器信号，设备兼容性强
- 瑞士原厂工业元器件，连续长时间工作故障率低
This ETEL EA-P2M-300-4 position controller is compatible with high-end semiconductor precision motion platforms
Dual axis synchronous control, single axis continuous output 7.5A current, sufficient overload performance
Supports EtherCAT high-speed bus, with short real-time communication cycle and fast response speed
Equipped with dual encoder feedback algorithm, high positioning accuracy and minimal repetition error
Built in tooth slot and friction compensation program to suppress motion shaking and shorten setting time
48-340VDC wide voltage input, suitable for various production line DC power supply systems
10/20kHz adjustable PWM carrier, suitable for various precision motors such as linear and voice coils
Integrated multiple hardware protections, including overvoltage, overcurrent, short circuit, and emergency stop safety logic
Equipped with trajectory filtering function, optimizing motion curves and reducing platform resonance
Modular compact body, rail buckle installation, simple wiring, space saving
Equipped with professional debugging software, one click mechanical identification, high on-site debugging efficiency
Multi channel digital/analog IO interface, compatible with probes, limit devices, and various peripherals
Support gantry synchronous control, suitable for high-precision wafer inspection and lithography workstations
Metal shielding shell, isolated from electromagnetic interference in the workshop, stable operation without drifting
Compatible with multiple encoder signals such as EnDat and TTL, with strong device compatibility
Swiss original industrial components with low failure rate for continuous long-term operation
Summary: The ETEL EA-P2M-300-4 position controller has high control accuracy, is suitable for precision semiconductor equipment, is easy to install and debug, and has stable and reliable long-term operation.
