Eaton XTCE820N 抑制器 PDF资料
1.产 品 资 料 介 绍：
Eaton XTCE820N 抑制器产品特点
Eaton XTCE820N 抑制器是专为 XTCE820N 接触器配套设计的二极管抑制附件，用于抑制线圈断电时产生的反向电动势，保护控制回路免受电压尖峰冲击，具体特点如下。
专为 XTCE820N 接触器设计，属于专用配套附件。
采用二极管抑制技术，有效吸收反向感应电压。
适用于 Frame B 尺寸的接触器附件规格。
属于真空管组件类型的抑制方案。
通过 CSA-C22.2、UL/IEC/EN 60947 等安全标准认证。
符合 CE 标志要求，可在欧洲市场使用。
重量仅约 0.01 磅，轻巧不增加设备负担。
安装便捷，直接装配在接触器本体上。
有效延长接触器线圈及相关元件使用寿命。
降低电磁干扰，提升控制系统稳定性。
标准配件编号为 XTCEXDSB，便于采购查询。
适用于工业电机控制及自动化设备接触器回路。
满足 IEC/Freedom 接触器附件分类标准。
制造商状态为非库存品，需按订单采购。
适用于 12-25A 框架规格的接触器附件平台。
总之，Eaton XTCE820N 抑制器是 XTCE820N 大电流接触器的重要保护附件，通过二极管抑制技术有效消除线圈反向电压冲击，确保控制回路安全可靠运行
Eaton XTCE820N 抑制器 英文介绍
Eaton XTCE820N Suppressor Product Features
The Eaton XTCE820N suppressor is a diode suppression accessory designed specifically for XTCE820N contactors. It is used to suppress the reverse electromotive force generated when the coil is powered off, protecting the control circuit from voltage spikes. The specific features are as follows.
Specially designed for XTCE820N contactors, it is a dedicated accessory.
Adopting diode suppression technology to effectively absorb reverse induced voltage.
Applicable to the specifications of contactor accessories for Frame B size.
The suppression scheme belongs to the type of vacuum tube component.
Certified to safety standards such as CSA-C22.2 and UL/IEC/EN 60947.
Meets CE marking requirements and can be used in the European market.
Weighing only about 0.01 pounds, it is lightweight and does not increase the burden on the equipment.
Easy to install, directly assembled onto the contactor body.
Effectively extend the service life of contactor coils and related components.
Reduce electromagnetic interference and improve control system stability.
The standard accessory number is XTCEXDSB, which is convenient for procurement inquiries.
Suitable for industrial motor control and automation equipment contactor circuits.
Meet the IEC/Freedom contactor accessory classification standards.
The manufacturer is in a non inventory status and needs to purchase according to the order.
Suitable for contactor accessory platforms with 12-25A frame specifications.
In summary, the Eaton XTCE820N suppressor is an important protective accessory for the XTCE820N high current contactor. Through diode suppression technology, it effectively eliminates coil reverse voltage surges, ensuring safe and reliable operation of the control circuit

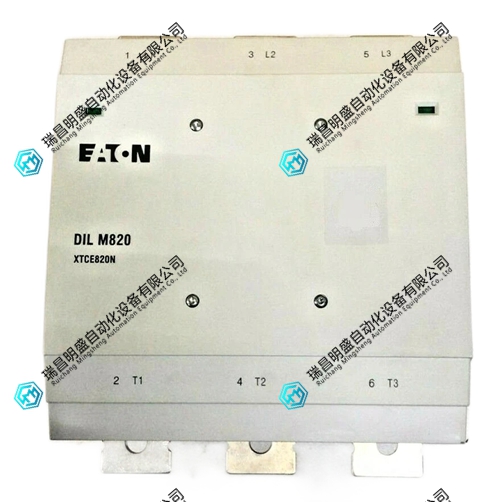

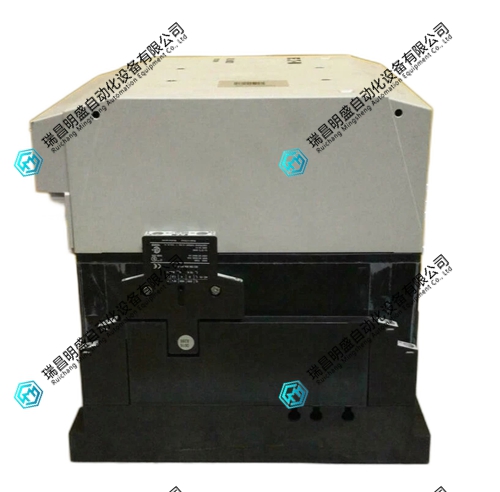

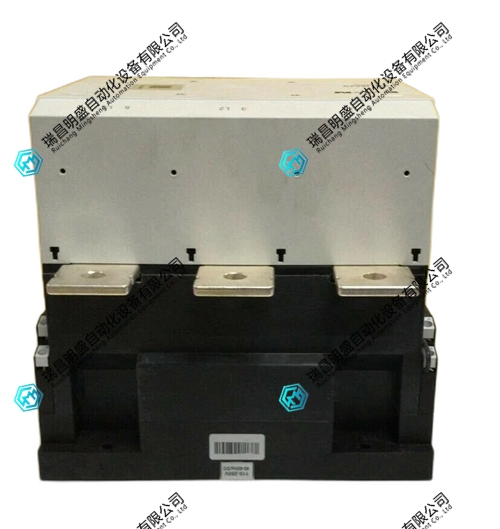

Eaton XTCE820N 抑制器 产品展示
