Thorlabs BSC103 步进电机控制器 PDF资料
1.产 品 资 料 介 绍：

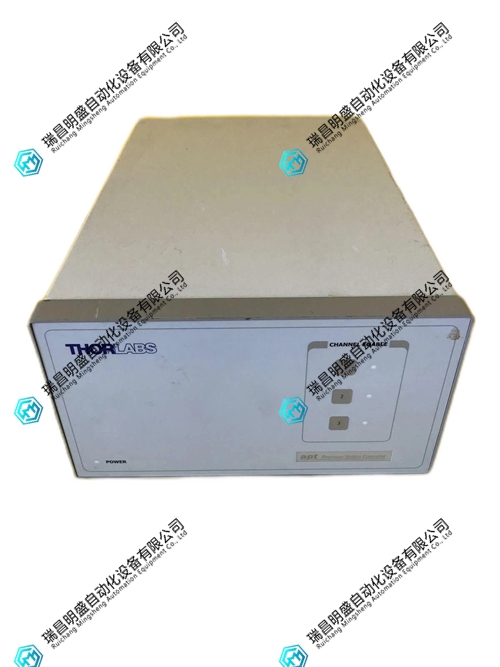

Thorlabs BSC103 步进电机控制器产品特点
Thorlabs BSC103是一款三通道台式步进电机控制器，适用于驱动两相双极步进电机，可灵活配置为二或三通道运行，具体特点如下。
三个独立控制通道，每通道由独立驱动卡管理。
每通道峰值功率48V/50W，平均功率25W。
128微步细分技术，定位精度高。
兼容Thorlabs多数纳米定位促动器和位移台。
内置DSP与低噪声模拟电路，信号稳定。
USB接口，支持多台设备连接至单台PC协同工作。
配套APT软件，操作界面直观。
支持用户自定义编程开发。
预置Thorlabs位移台参数，接入后自动加载。
支持手动输入参数，适配第三方电机。

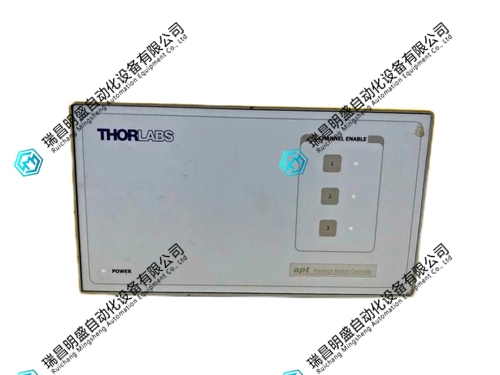

前面板有通道按钮和LED指示灯，状态一目了然。

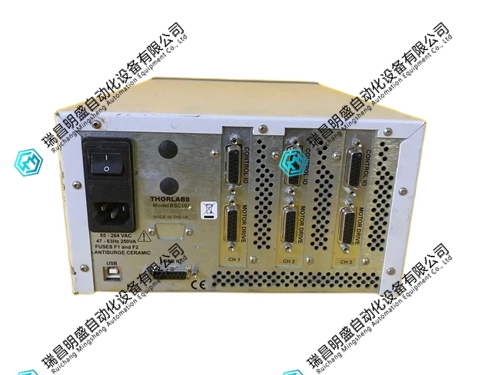

后面板15针D型接口，集成驱动与编码器反馈。
宽电压输入(85-264VAC)，适应不同地区。
内置归零功能，一键建立参考基准。
已停产，被BSC203替代，二手市场有流通。
总之，Thorlabs BSC103精度高、兼容性好、软件支持强大，是精密定位系统的可靠控制选择。
Thorlabs BSC103 Stepper Motor Controller Product Features
Thorlabs BSC103 is a three channel desktop stepper motor controller suitable for driving two-phase bipolar stepper motors, which can be flexibly configured for two or three channel operation. The specific features are as follows.
Three independent control channels, each managed by an independent driver card.
The peak power of each channel is 48V/50W, and the average power is 25W.
128 micro step subdivision technology with high positioning accuracy.
Compatible with most Thorlabs nanopositioning actuators and displacement tables.
Built in DSP and low-noise analog circuit, stable signal.
USB interface, supporting multiple devices to connect to a single PC for collaborative work.
Equipped with APT software, the operation interface is intuitive.
Support user-defined programming development.
Pre set Thorlabs displacement table parameters, automatically loaded after integration.
Support manual input of parameters and adaptation to third-party motors.
The front panel has channel buttons and LED indicator lights, making the status clear at a glance.
15 pin D-type interface on the rear panel, integrating driver and encoder feedback.
Wide voltage input (85-264VAC), suitable for different regions.
Built in zeroing function, one click to establish reference benchmark.
It has been discontinued and replaced by BSC203, with circulation in the second-hand market.
In summary, Thorlabs BSC103 has high precision, good compatibility, and powerful software support, making it a reliable control choice for precision positioning systems.
