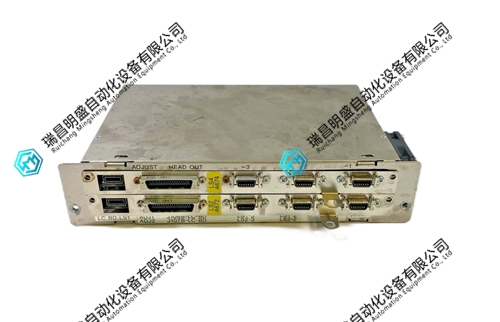

SONY 4S085-291 激光标度放大器盒 PDF资料
1.产 品 资 料 介 绍：
SONY 4S085-291 激光标度放大器盒产品特点

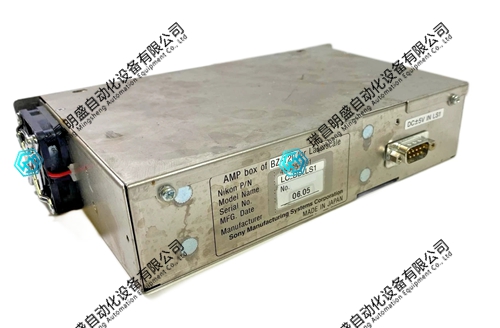

SONY 4S085-291 是一款激光标度放大器盒（Laserscale AMP Box），型号为 LC_BX_LS1，属于索尼 BZ-T25 系列产品，专为高精度光刻设备配套使用，主要特点如下。
用于激光标尺（Laserscale）信号的放大与处理，保障位置反馈精度。
采用双卡设计结构，支持多通道信号管理。
适配 Nikon NSR 系列步进光刻系统，原厂配套性强。
采用盒式放大器设计，集成度高，便于机柜安装。
24V直流供电，符合工业设备通用电源标准。
信号传输稳定可靠，满足半导体制造高要求工况。
日本索尼原厂制造，工艺与品控有保障。
接口标准化，与配套激光标尺即插即用。
外壳坚固，适应洁净室及工业现场环境。
工作状态指示灯完备，便于快速判断运行状况。
内部电路布局合理，抗电磁干扰性能良好。
作为信号中继放大组件，有效延长传感器传输距离。
元器件选型优质，长期运行稳定性高。
同型号可直接替换，维保备件管理方便。
从正常产线拆除，侧面印证实际使用可靠性高。
总之，SONY 4S085-291 激光标度放大器盒信号处理稳定、配套兼容性好，是 Nikon 光刻机等精密设备中激光尺反馈系统的重要组件。
SONY 4S085-291 Laser Scale Amplifier Box Product Features
SONY 4S085-291 is a Laserscale AMP Box, model LC-BX_LS1, belonging to the Sony BZ-T25 series products, designed for use with high-precision lithography equipment. Its main features are as follows.
Used for amplifying and processing Laserscale signals to ensure position feedback accuracy.
Adopting a dual card design structure, supporting multi-channel signal management.
Compatible with Nikon NSR series stepper lithography system, with strong factory compatibility.
Adopting a box type amplifier design, it has high integration and is easy to install in the cabinet.
24V DC power supply, in compliance with the general power supply standards for industrial equipment.
The signal transmission is stable and reliable, meeting the high requirements of semiconductor manufacturing conditions.
Made by Sony in Japan, with guaranteed craftsmanship and quality control.
Interface standardization, plug and play with matching laser rulers.
The shell is sturdy and suitable for clean room and industrial site environments.
The working status indicator lights are complete, making it easy to quickly determine the operating status.
The internal circuit layout is reasonable and has good anti electromagnetic interference performance.
As a signal relay amplification component, it effectively extends the transmission distance of sensors.
High quality component selection and long-term stable operation.
The same model can be directly replaced, and maintenance spare parts management is convenient.
Dismantling from the normal production line indirectly confirms the high reliability of actual use.
In summary, the SONY 4S085-291 laser scale amplifier box has stable signal processing and good compatibility, making it an important component of the laser ruler feedback system in precision equipment such as Nikon lithography machines.
