ERHARDT & LEIMER FX5230 超声波传感器 PDF资料
1.产 品 资 料 介 绍：
ERHARDT & LEIMER FX5230 超声波传感器产品特点
ERHARDT & LEIMER FX5230是一款用于卷材纠偏检测的超声波叉式探边传感器，适用于薄膜、纸张、金属箔等多种材料的边缘位置检测，具体特点如下。
叉口间距30mm，检测范围为±10mm，检测精度高。
采用超声波非接触检测方式，不受透光、粉尘、油污等环境因素干扰。
内置温度补偿功能，环境温度变化时检测数值保持稳定。
自带LED条状指示灯与调节按键，现场校准操作简便。
24V直流供电，支持CAN总线对接纠偏控制器。
防护等级IP54，适应车间多尘、潮湿工况。
无物理接触卷材，减少耗材磨损，使用寿命长。
高频超声信号，高速运行卷材也能稳定识别边缘。
线性检测误差小，有效防止材料跑偏。
标准接口设计，拆装接线便捷。
一体叉型结构，安装无需额外辅助支架。
实时输出边缘位置信号，实现闭环纠偏控制。
工作温度区间广，车间常规环境均可使用。
规格统一，同型号备件可直接替换，维护方便。
对纸、塑料和金属膜等不透声材料的扫描不受材料透明度影响。
总之，ERHARDT & LEIMER FX5230超声波传感器稳定性强、抗干扰能力突出，是各类卷材生产线纠偏检测的核心配件。
ERHARDT & LEIMER FX5230 超声波传感器 英文介绍
ERHARDT&LEIMER FX5230 Ultrasonic Sensor Product Features
ERHARDT&LEIMER FX5230 is an ultrasonic fork type edge detection sensor used for roll correction detection, suitable for edge position detection of various materials such as film, paper, metal foil, etc. The specific features are as follows.
The fork spacing is 30mm, the detection range is ± 10mm, and the detection accuracy is high.
Adopting ultrasonic non-contact detection method, it is not affected by environmental factors such as light transmission, dust, oil pollution, etc.
Built in temperature compensation function, the detection value remains stable when the ambient temperature changes.
Comes with LED strip indicator lights and adjustment buttons, making on-site calibration easy to operate.
24V DC power supply, supporting CAN bus docking with correction controller.
Protection level IP54, suitable for dusty and humid working conditions in the workshop.
No physical contact with the coil material, reducing consumable wear and ensuring a long service life.
High frequency ultrasonic signals and high-speed operation of the coil can also stably identify edges.
The linear detection error is small, effectively preventing material deviation.
Standard interface design, easy disassembly and wiring.
Integrated fork shaped structure, installation does not require additional auxiliary brackets.
Real time output of edge position signals to achieve closed-loop correction control.
The working temperature range is wide, and it can be used in conventional workshop environments.
Unified specifications, spare parts of the same model can be directly replaced, and maintenance is convenient.
The scanning of non transparent materials such as paper, plastic, and metal film is not affected by material transparency.
In short, ERHARDT&LEIMER FX5230 ultrasonic sensors have strong stability and outstanding anti-interference ability, and are the core accessories for correction and detection of various coil production lines.

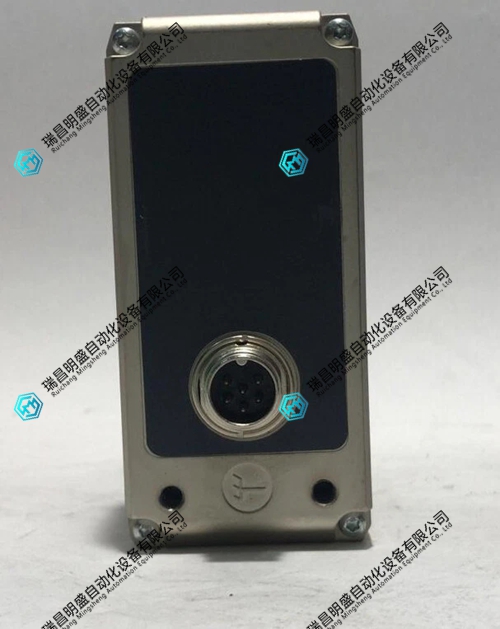

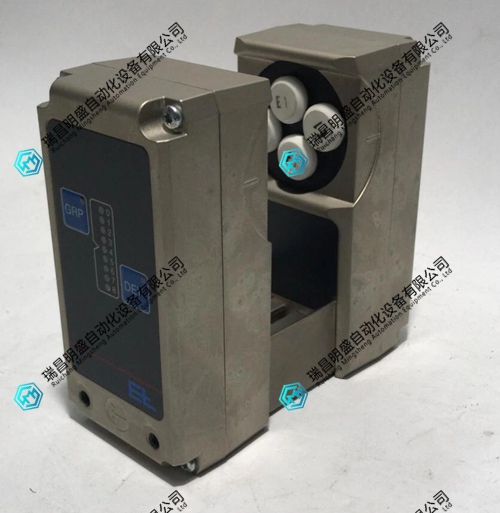

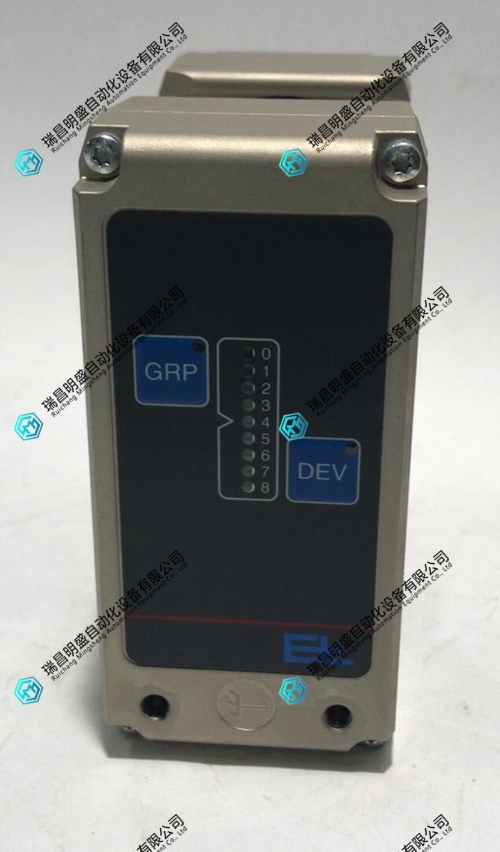

ERHARDT & LEIMER FX5230 超声波传感器 产品展示
