ACS CM-2-A-E-M2-H4-SC运动控制 PDF资料
1.产 品 资 料 介 绍：
ACS CM-2-A-E-M2-H4-SC 运动控制器是一款集成双轴伺服驱动功能的高性能控制模块，其核心特点如下。
中间15条：
ACS CM-2-A-E-M2-H4-SC 集成2个内置伺服驱动器，可直接驱动电机。
驱动器输出电流最高可达7.5A连续/15A峰值。
驱动器电源输入支持85-265Vac宽电压范围。
支持速度、位置、转矩三种标准控制模式。
所有控制环采样与刷新周期均为20kHz，响应快速。
每轴支持双反馈，可接入增量式或SinCos编码器。
具备安全转矩关断（STO）功能，保障运行安全。
内置陷波滤波器与低通滤波器，可抑制机械共振。
采用空间矢量调制技术，降低高速运行时的位置误差。
支持点对点、点动、主从、PVT插值等多种运动模式。
具备8路通用数字量输入和8路数字量输出。
具备4路模拟量输入和2路模拟量输出，12位分辨率。
支持TCP/IP以太网通信接口。
支持RS-232串行通信接口。
ACS CM-2-A-E-M2-H4-SC 采用紧凑型设计，节省电柜安装空间。
结尾：
综上，ACS CM-2-A-E-M2-H4-SC 在高性能运动控制、集成驱动能力及灵活扩展性方面均有良好表现，适用于对运动精度要求较高的工业自动化场景。
ACS CM-2-A-E-M2-H4-SC运动控制 英文介绍
The ACS CM-2-A-E-M2-H4-SC motion controller is a high-performance control module that integrates dual axis servo drive function. Its core features are as follows.
Middle 15:
ACS CM-2-A-E-M2-H4-SC integrates 2 built-in servo drivers, which can directly drive the motor.
The maximum output current of the driver can reach 7.5A continuously/15A peak.
The drive power input supports a wide voltage range of 85-265Vac.
Supports three standard control modes: speed, position, and torque.
All control loops have a sampling and refresh cycle of 20kHz, with fast response.
Each axis supports dual feedback and can be connected to incremental or SinCos encoders.
Equipped with Safety Torque Off (STO) function to ensure safe operation.
Built in notch filter and low-pass filter can suppress mechanical resonance.
Using space vector modulation technology to reduce position errors during high-speed operation.
Supports multiple motion modes such as point-to-point, jog, master-slave, PVT interpolation, etc.
Equipped with 8 universal digital inputs and 8 digital outputs.
Equipped with 4 analog inputs and 2 analog outputs, with a resolution of 12 bits.
Supports TCP/IP Ethernet communication interface.
Supports RS-232 serial communication interface.
ACS CM-2-A-E-M2-H4-SC adopts a compact design, saving installation space for electrical cabinets.
ending:
Overall, ACS CM-2-A-E-M2-H4-SC has shown excellent performance in high-performance motion control, integrated drive capability, and flexible scalability, making it suitable for industrial automation scenarios that require high motion accuracy.

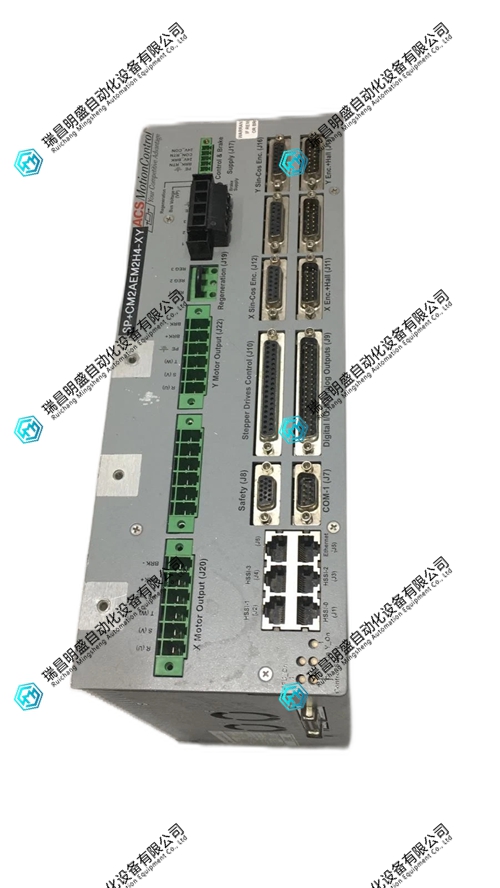

ACS CM-2-A-E-M2-H4-SC运动控制 产品展示
