ACS CM-2-A-E-M0-H4-SC运动控制系统 PDF资料
1.产 品 资 料 介 绍：
ACS CM-2-A-E-M0-H4-SC 运动控制系统产品特点
ACS CM-2-A-E-M0-H4-SC 是ACS Motion Control公司生产的一款高集成度运动控制系统模块，采用EtherCAT总线通信，主要用于半导体及精密制造设备中的多轴高精度运动控制。
该型号主要产品特点：
基于EtherCAT总线通信，支持多轴同步控制。
采用多处理器架构，运行高性能伺服算法。
支持直线电机、音圈电机、步进电机及有刷/无刷直流电机。
具备亚纳米级定位精度。
支持直线和圆弧插补等复杂轨迹运动。
具备精准力控制功能，支持接触检测。
支持基于位置的高速事件触发。
可选配激光控制接口，实现激光脉冲与运动同步。
支持多轴龙门控制算法（MIMO）。
模块化设计，结构紧凑，支持面板安装。
支持ACSPL+实时编程语言。
支持TCP/IP、Modbus、RS-232等多种通信协议。
可选配STO及SS1功能安全选项。
适用于7x24小时连续工业运行环境。
原厂制造，品质可靠。
总结：该运动控制系统具备高精度定位、多轴同步、灵活编程和工艺同步触发等特点，适用于对运动控制精度和系统集成度要求较高的半导体及精密制造设备。
ACS CM-2-A-E-M0-H4-SC运动控制系统 英文介绍
ACS CM-2-A-E-M0-H4-SC Motion Control System Product Features
ACS CM-2-A-E-M0-H4-SC is a highly integrated motion control system module produced by ACS Motion Control. It uses EtherCAT bus communication and is mainly used for multi axis high-precision motion control in semiconductor and precision manufacturing equipment.
The main product features of this model are:
Based on EtherCAT bus communication, it supports multi axis synchronous control.
Adopting a multiprocessor architecture, running high-performance servo algorithms.
Supports linear motors, voice coil motors, stepper motors, and brushed/brushless DC motors.
Capable of sub nanometer level positioning accuracy.
Supports complex trajectory movements such as line and arc interpolation.
Equipped with precise force control function and supporting contact detection.
Support location-based high-speed event triggering.
Optional laser control interface to achieve synchronization between laser pulses and motion.
Support multi axis gantry control algorithm (MIMO).
Modular design, compact structure, supports panel installation.
Supports ACSPL+real-time programming language.
Supports multiple communication protocols such as TCP/IP, Modbus, RS-232, etc.
Optional STO and SS1 functional safety options are available.
Suitable for 7x24 hour continuous industrial operation environment.
Original factory manufacturing, reliable quality.
Summary: This motion control system has the characteristics of high-precision positioning, multi axis synchronization, flexible programming, and process synchronization triggering, and is suitable for semiconductor and precision manufacturing equipment with high requirements for motion control accuracy and system integration.

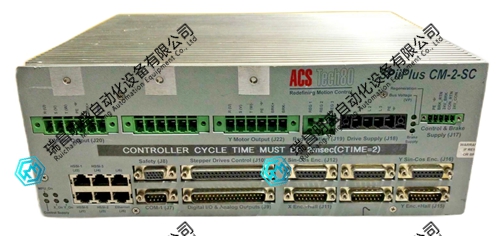

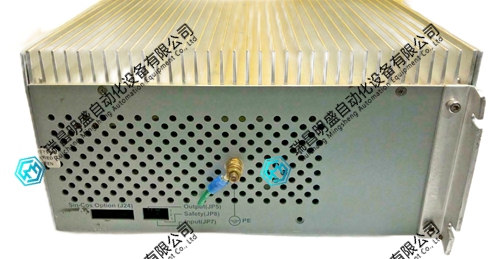

ACS CM-2-A-E-M0-H4-SC运动控制系统 产品展示
