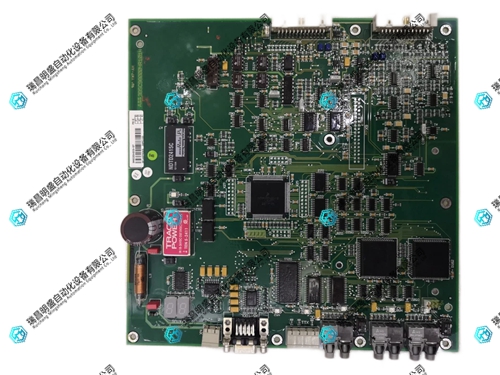

DAPC100 3ASC25H203 控制板 PDF资料
1.产 品 资 料 介 绍：
DAPC100 3ASC25H203 是工业自动化系统中的控制板，主要用于驱动与监控伺服系统或电机控制系统，实现精确的运动控制和信号处理。它通常与伺服驱动器、传感器及上位控制系统协同工作。
一、基本概述
DAPC100 控制板集成了高速处理器、接口电路及控制逻辑单元，可接收指令信号、处理运动控制算法，并输出控制信号至执行单元，是伺服控制系统的核心部分之一。
二、核心功能
- 运动控制：实现伺服电机的精确位置、速度及转矩控制
- 信号处理：对编码器或传感器反馈信号进行采集与运算
- 闭环控制：通过反馈实现高精度的闭环控制
- 接口管理：连接驱动器、传感器及上位控制系统
- 故障检测：支持异常状态监测及保护功能
三、性能特点
- 高响应速度：快速处理控制指令与反馈信号
- 高控制精度：适合精密加工及自动化设备
- 稳定性强：工业级设计，适应长期连续运行
- 抗干扰能力高：保证信号传输与控制稳定
- 模块化设计：便于维护、更换与系统扩展
四、典型应用
- 数控机床和加工中心
- 工业机器人驱动控制
- 自动化生产线伺服控制
- 包装机械与印刷设备
- 精密运动控制系统
五、总结
DAPC100 3ASC25H203 控制板是伺服控制系统中的核心模块，通过精确的指令处理和闭环控制，使设备运动稳定、精确，是实现高性能自动化控制的重要组成部分。
DAPC100 3ASC25H203 is a control board in industrial automation systems, mainly used for driving and monitoring servo systems or motor control systems, achieving precise motion control and signal processing. It usually works in conjunction with servo drives, sensors, and upper control systems.
1、 Basic Overview
The DAPC100 control board integrates a high-speed processor, interface circuit, and control logic unit, which can receive instruction signals, process motion control algorithms, and output control signals to the execution unit. It is one of the core parts of the servo control system.
2、 Core functions
Motion control: achieve precise position, speed, and torque control of servo motors
Signal processing: Collecting and computing feedback signals from encoders or sensors
Closed loop control: achieving high-precision closed-loop control through feedback
Interface management: connecting drivers, sensors, and upper control systems
Fault detection: supports abnormal state monitoring and protection functions
3、 Performance characteristics
High response speed: Quickly process control instructions and feedback signals
High control precision: suitable for precision machining and automation equipment
Strong stability: Industrial grade design, suitable for long-term continuous operation
High anti-interference ability: ensuring stable signal transmission and control
Modular design: easy to maintain, replace, and expand the system
4、 Typical applications
CNC machine tools and machining centers
Industrial Robot Drive Control
Automated production line servo control
Packaging Machinery and Printing Equipment
Precision motion control system
5. Summary
The DAPC100 3ASC25H203 control board is the core module in servo control systems. Through precise instruction processing and closed-loop control, it ensures stable and accurate equipment movement, and is an important component for achieving high-performance automation control.
