6151NB10700接口机箱模块 PDF资料
1.产 品 资 料 介 绍：
6151NB10700 接口机箱模块
型号: 6151NB10700
类型: 接口机箱 / 模块底盘
核心定位
6151NB10700 是用于 ABB Taylor MOD 300 控制系统的接口机箱模块，它主要作用是为多个接口模块提供安装平台和背板连接，实现模块之间的电气互联和供电支持。它本身不处理信号或逻辑功能，但为系统中的各类接口模块提供支撑和通道。
主要功能
机械支撑：提供固定和插放接口模块的机箱结构。
电气连接：通过内部背板将各模块与系统总线和电源连接。
供电支持：适配系统的电源环境，常用 117 V AC，为接口模块提供电力。
使用场景
安装在工业控制柜内部，作为系统框架的一部分。
可插入多个接口模块、通信模块，实现不同模块间的互联。
与 CPU 模块、I/O 模块、电源模块等协同工作，构成完整的控制系统。
特点与注意
本身不具备独立功能，是控制系统模块化的基础组件。
背板设计保证电气互联和模块间信号传输。
安装时需注意电源匹配和机柜通风，确保系统稳定运行。
6151NB10700 可以理解为 控制系统内部的模块化机箱和背板，是接口模块和通信模块运行的物理和电气基础。
6151NB10700接口机箱模块 英文介绍
6151NB10700 interface chassis module
Model: 6151NB10700
Type: Interface chassis/module chassis
core positioning
6151NB10700 is an interface chassis module used for ABB Taylor MOD 300 control system. Its main function is to provide installation platform and backplane connection for multiple interface modules, realizing electrical interconnection and power supply support between modules. It does not handle signals or logic functions on its own, but provides support and channels for various interface modules in the system.
Main functions
Mechanical support: Provide a chassis structure for fixing and inserting interface modules.
Electrical connection: Connect each module to the system bus and power supply through the internal backplane.
Power supply support: Adapt to the power environment of the system, commonly using 117V AC to provide power for the interface module.
Usage scenarios
Installed inside the industrial control cabinet as part of the system framework.
Multiple interface modules and communication modules can be inserted to achieve interconnection between different modules.
Collaborate with CPU modules, I/O modules, power modules, etc. to form a complete control system.
Characteristics and Precautions
It does not have independent functions and is the basic component of modular control systems.
The backplane design ensures electrical interconnection and signal transmission between modules.
During installation, attention should be paid to power matching and cabinet ventilation to ensure stable system operation.
6151NB10700 can be understood as a modular chassis and backplane within the control system, serving as the physical and electrical foundation for the operation of interface modules and communication modules.

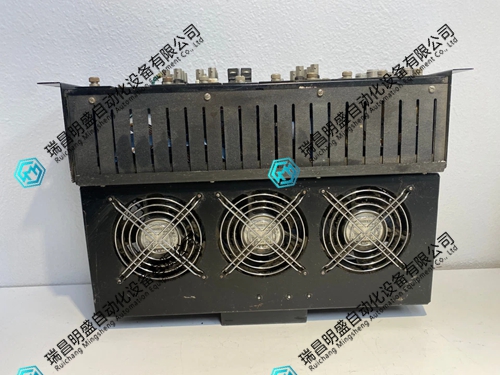

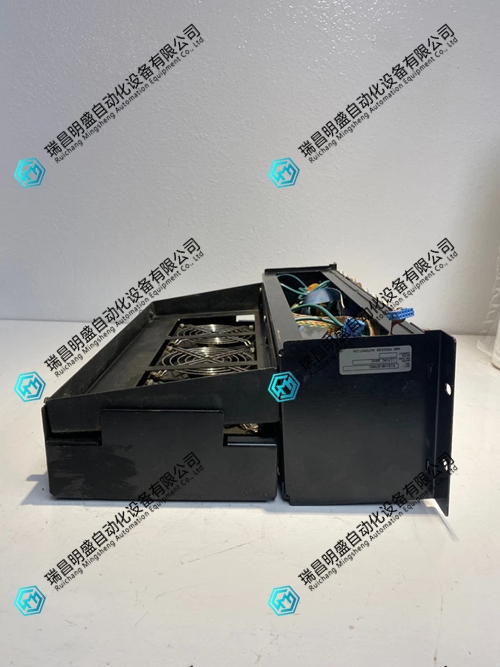

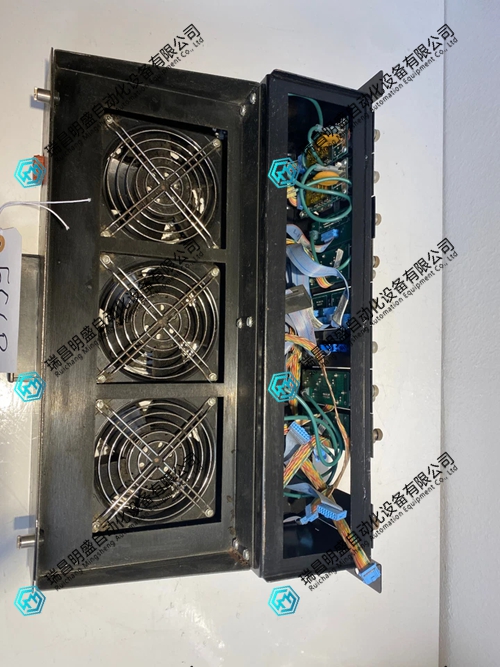

6151NB10700接口机箱模块 产品展示
